X-Rayted Files: Battery-Powered Advancements Keep on Ticking

Understanding that batteries will power our increasingly electrified future is an important focus for the electronics manufacturing industry. While most manufacturers will simply benefit from an increased demand for additional boards and electronic assemblies, some may choose to migrate into battery production as well. Understanding batteries and how they power so many of the devices we make is crucial to the success of this enterprise.

Of course, the primary driver (get it?) of large-scale battery production, as well as advancements in battery design and chemistry, are automakers, who now produce the largest amount of consumer electronics to date. Tesla took an early lead in battery design before making the jump into manufacturing. In cooperation with Panasonic, Tesla's Gigafactory in Nevada now produces cell-type batteries like the 2170 used in the Tesla Model 3. Ford and GM are also both investing heavily in domestic battery production to develop the pouch-type batteries necessary for their own electric vehicle offerings. Because of some powerful government incentives, much of that battery production for both domestic and foreign automakers is going to happen right here in the United States.

cardoso_hero_battery_tech.jpgMost of the current battery designs rely on lithium-ion for their basic chemistry. The basics inside a battery assembly include a sheet or sheets of positively charged electrode or anode, and negatively charged electrode or cathode, separated from one another by thin sheets. For cells like the 2170, the sheets are rolled (thus often referred to as “jelly rolls”) and inserted into their metal outer case; electrolyte supports the flow of electrons to the attached terminals. For pouch batteries, the sheets remain flat and are instead inserted into an aluminum-coated plastic pouch. While this process may sound relatively straightforward, there are many challenges to successfully assembling these products.

As a supplier of X-ray inspection equipment, I’m seeing a significant increase in inquiries seeking solutions for quality inspection of batteries, and for good reason. We all remember the dangers associated with battery failures in Samsung phones; such failures would be even more disastrous for significantly larger consumer electronics. As electronics manufacturers, you know that quality and safety standards have always been higher for auto manufacturing than for consumer electronics, and for good reason. That experience uniquely positions the industry to support the manufacture of not only batteries, but all associated electronics.

There’s a wide range of failure modes for lithium-ion batteries. In the early days of Gigafactory, Panasonic was reported to have been scraping as many as half a million defective cells daily to keep pace with demand. Like in board manufacturing, battery production benefits from multiple point inspections during the assembly process. Connectors need to be inspected for weld or solder defects. Both pouches and rolls must validate electrolyte fill levels and absence of dry spots. Rolls need to be evenly wound and free of gaps or delamination. Pouches must be carefully inspected for electrode overhang, especially in corners.  Both types must be free of foreign materials and contaminants. Defects that leave the factory can be downright catastrophic, including fires resulting from thermal runaway that can be impossible to extinguish. When done right, though, these and other emerging battery technologies will power an exciting future.

It's not just big players like Tesla, GM, and Ford flexing their muscles in this market; there may be opportunities for smaller EMS providers to make the shift to electric vehicles as well. A cottage industry of sorts is emerging among those converting legacy vehicles to electric, as well as those producing specialty electric vehicles for consumers seeking something different. These low-volume, boutique manufacturers will need the support of nimble and efficient specialty electronics of all types, batteries included.

I’ve been in the electronics industry in one form or another since I was a teen. We’re always on the forefront of technological change—that's what makes this industry both challenging and exciting. If we keep our eyes on the battery technology space, we can appreciate the thrill of yet another new change while also benefiting from the many opportunities it creates.

Dr. Bill Cardoso is CEO of Creative Electron.

Back

2022

X-Rayted Files: Battery-Powered Advancements Keep on Ticking

11-23-2022

Understanding that batteries will power our increasingly electrified future is an important focus for the electronics manufacturing industry. While most manufacturers will simply benefit from an increased demand for additional boards and electronic assemblies, some may choose to migrate into battery production as well. Understanding batteries and how they power so many of the devices we make is crucial to the success of this enterprise.

View Story

X-Rayted Files: What’s Cooler Than X-ray?

10-12-2022

At the most basic level, imaging—whether optical, X-ray, or even computed tomography (CT)—is data collection. Why we gather that data, of course, is to develop useful information about the product we are imaging. When the method of imaging provides the information we need, we have actionable data. When considering whether to employ X-ray imaging vs. CT, there are quite a few considerations, but most important is whether our choice will successfully result in actionable data, providing genuine insight (pun intended) into our product and process.

View Story

X-Rayted Files: My Favorite BGA Assembly Ever, Part 3

09-07-2022

While the novelty may have worn off, let’s take one last look at my favorite BGA image. In part 2, we discussed issues of coplanarity, shorts and head in pillow. Now we will review the other common BGA assembly issues, illustrated so well in Figure 1. Whether you are fascinated by this, maintaining awareness of these common failure modes of BGAs, and inspecting for them throughout your process will increase yield, reduce rework and scrap, and result in higher quality, more reliable products.

View Story

X-Rayted Files: My Favorite BGA Assembly Ever, Part 2

08-10-2022

One of the most notorious component failures in manufacturing is a faulty ball grid array (BGA). Any line manager or engineer will tell you that there are too many things that can cause a BGA to fail. When a BGA is installed on a circuit board in a factory, it is visually checked for proper alignment. If it passes this simple test some might assume all is well. However, even a board that passes a cursory exam can still be terribly flawed. Because the BGA is a bottom terminating component, examination for quality of the connection cannot be seen with optical tools. To make sure there is a good connection between the BGA and the board, an X-ray inspection is essential. We’ll revisit my favorite X-ray image of a BGA that I shared in my last column and dig into the details of how to address its many problems.

View Story

X-Rayted Files: My Favorite BGA Assembly Ever

07-06-2022

In the early 1980s, Motorola and IBM introduced a novel package that allowed a high number of input and outputs with a large pitch in a small area, thus providing large savings in board real-estate. The ball grid array (BGA) was born. Initially in ceramic, by the late 1980s Motorola—and this time Citizen—brought to market the plastic BGA. This was the pivotal step needed to drop the cost of this packaging technology and to enable the electronic miniaturization wave that soon followed.

View Story

X-Rayted Files: Smart vs. Intelligent SMT Factory

06-01-2022

Amazon currently employs over 200,000 robots across 175 fulfillment centers around the world. The robot ranks at Amazon grow every year, and in some facilities, they outnumber the humans. As the lights out concept rapidly grows with the giant retailer, automation adoption still finds resistance in the SMT manufacturing world. I don’t know what the future holds for surface mount technology (SMT) manufacturing, but I’m certain it depends on our intelligence. As a community, we spend a lot of time discussing the Smart factory. Instead, we should aim higher to the "Intelligent factory."

View Story

X-Rayted Files: X-ray Everything!

04-27-2022

It should be clear by now that my enthusiasm for X-ray knows no bounds. From fighting counterfeits, inventory management, solder inspection, and quality control for an endless array of manufactured products, the usefulness of X-ray inspection tools is seemingly limitless. So, forgive me for not setting my bias aside, but when it comes to X-ray imaging, you probably fall into one of the following categories: you don’t need X-ray and you know it, you need X-ray but don’t know it, you have X-ray but are underutilizing it, or you are the rarest of birds who has X-ray but just doesn’t need it.

View Story

X-Rayted Files: What’s That Noise? Is it Your Data?

04-05-2022

We are in the era of data, big data, and that should be a good thing. But the sheer volume of data we are collecting can be overwhelming; its meaning and usefulness can become a burden, just more noise. All data is noise until it can be contextualized into actionable information. From that perspective, our goal with data collection should be to reduce the noise and organize data in ways that generate meaningful information that can be used to improve our processes. Take this short quiz to gauge where your organization stands.

View Story

X-Rayted Files: Should I Stay or Should I Go? The Future of Trade Shows

03-02-2022

I’ve heard the question repeatedly over the last couple of years, “Is the trade show dead?” It’s a valid question, and I’m not sure what the answer is, should be, or even what I wish it was. With a couple years under our belts now with canceled live events, some limited in person events, and an absolute tidal wave of virtual events and webinars, I am developing an opinion. Informing this opinion is also the fact that we have experience, and in some cases, success in finding effective alternatives to fill the void left by years of shows being on life support. On the whole, it has me scratching my head on another question. Is there a valid purpose for trade shows?

View Story

X-Rayted Files: Nine and a Half Facts About Unknown Radiation

01-26-2022

As we kick off 2022, we thought it would be a good idea to give you a break from another column, talking about “what’s next” after COVID. Yes, the pandemic still here, inflation is kicking in, labor shortages are an issue, supply chains are still disrupted. But let’s take a break from all that and have some fun with X-rays. How about going over some facts that you may (or may not) know about X-rays?

View Story
Back

2021

X-Rayted Files: 2022's Word of the Year is... Resilience

12-29-2021

On balance, this last year goes down as a pretty good one. While we are not as far along in putting the pandemic behind us as we might have hoped, the progress is promising. The economic recovery has been remarkable, despite persistent supply chain woes and (transitory?) inflationary pressures. With consumer demand high, and signs of relief regarding the supply chain, the coming year and its prospect of a return to “normal” will likely offer substantial opportunities, though we must also be mindful of risks.

View Story

X-Rayted Files: Three or More Intriguing Thoughts on Reshoring

11-29-2021

The ground beneath us is always shifting, and while the term “unprecedented” can be somewhat overused, it does seem to be a little tougher to keep our balance these days. For almost every economic disruption, there emerges some argument for how reshoring can mitigate it. This time around, though, there’s a bit of a tug-o-war between the disruptions that are shaping the manufacturing landscape and the broader economy. I’m no economist, but as a dyed in the wool entrepreneur I’d like to share three thoughts about the future of manufacturing with a focus on reshoring, the talent pool, and the joy of making things.

View Story

The X-Rayted Files: Was CS Model 101 Built on Industry 4.0?

10-27-2021

While smart devices like sleep trackers that monitor the quality of our ZZs are exciting to some, for others it induces the fear of becoming subject to robot overlords. Regardless, the age of IoT is upon us, and as manufacturers, IoT is just one facet of the broader Industry 4.0.

View Story

X-Rayted Files: Radiation’s Effects on Electronic Components

09-22-2021

Whether it’s from naturally occurring sources or induced by modern human ingenuity, electronic components, like everything else, are subject to regular exposure to radiation. It is vital to understand the various sources of radiation exposure as well as their likely effects on today’s microelectronics and the devices they make possible.

View Story

X-Rayted Files: Semiconductor Shortage—Avoiding Counterfeit Components

08-11-2021

From bicycles to sundries, from consumer electronics to automobiles, shortages and supply chain issues have hampered an otherwise strong economic recovery much of the world emerge from the pandemic. Among these challenges, none has received more media attention than the semiconductor shortage.

View Story

X-Rayted Files: Tales from the Files of Lithium-ion Batteries

06-23-2021

Lithium-ion batteries have, in part, enabled the continued miniaturization of the devices we love. They have also played an important role in making practical electric cars a reality. But like other approaches high density energy storage, they do present risks.

View Story

X-Rayted Files: Genius, Evil, or Evil Genius?

05-20-2021

Apple dominates its market in many ways. Is this genius for the consumer, or does it effectively rule out any competition? Columnist Bill Cardoso debates its merits—and disadvantages for other players.

View Story

X-Rayted Files: Crafting Our ‘Next Normal’

04-20-2021

As profound an experience as it has been to lead an enterprise through the pandemic, what’s to come may make every bit as much of an impression. So many things that we took for granted as practices and behaviors etched in stone, were interrupted, suspended, or eliminated entirely. As we exit the tunnel into the light of the post-pandemic, we will be challenged collectively in crafting the next normal.

View Story

X-Rayted Files: The Bright Side of the Chip Shortage

03-17-2021

In his previous column, “The Dark Side of the Chip Shortage: Counterfeits,” Bill addressed one of unanticipated outcome of the crisis: the shortage of electronic components and predictable wave of counterfeit components likely to flood the market. Combating that tsunami of fakes may also accelerate the adoption of advanced techniques for detecting counterfeit components.

View Story

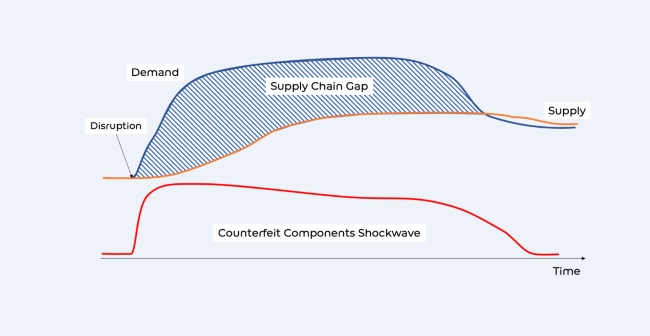

X-Rayted Files: The Dark Side of the Chip Shortage—Counterfeits

02-17-2021

It’s February 2021, and as the world slowly recovers from the COVID-19 pandemic, another problem plagues the global economy: the electronic component shortage. What some economists have deemed to be a decade of immense prosperity and growth, the “roaring ‘20s” started with a hiccup.

View Story
Back

2020

X-Rayted Files: Solving for the Limits of Human Visual Inspection

12-16-2020

Because a key element of quality control in manufacturing is still good old-fashioned visual inspection, it’s important to understand the ability of operators to sustain their focus and what we can do to support their success. And while the fallibility of human inspection presents challenges, Dr. Bill Cardoso details how there are many ways to address shortcomings.

View Story

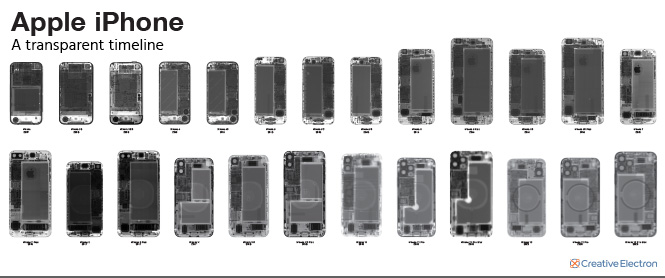

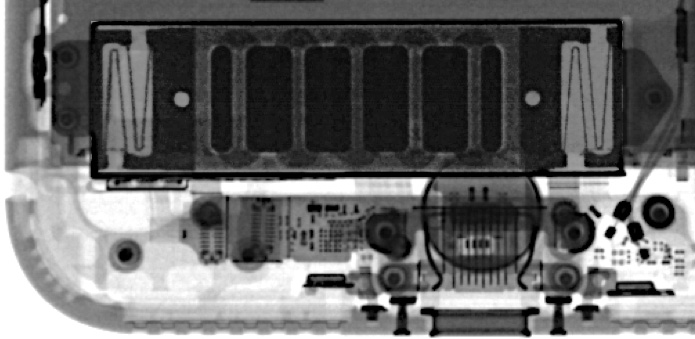

X-Rayted Files: iPhone Transparency—A Window Into SMT
