A Graphene Superconductor That Plays More Than One Tune
July 18, 2019 | Berkeley LabEstimated reading time: 5 minutes

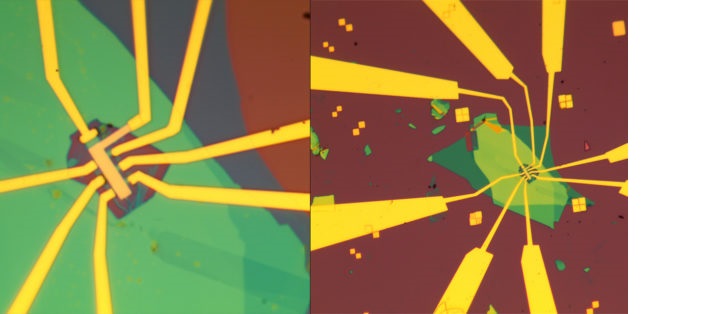

Two views of the trilayer graphene/boron nitride heterostructure device as seen through an optical microscope. The gold, nanofabricated electric contacts are shown in yellow; the silicon dioxide/silicon substrate is shown in brown; and the boron nitride flakes are shown in green. The trilayer graphene device is encapsulated between two boron nitride flakes. (Credit: Guorui Chen/Berkeley Lab)
Working with David Goldhaber-Gordon of Stanford University and the Stanford Institute for Materials and Energy Sciences at SLAC National Accelerator Laboratory, and Yuanbo Zhang of Fudan University, the researchers used a dilution refrigerator, which can reach intensely cold temperatures of 40 millikelvins—or nearly minus 460 degrees Fahrenheit—to cool the graphene/boron nitride device down to a temperature at which the researchers expected superconductivity to appear near the Mott insulator phase, said Chen.
Once the device reached a temperature of 4 kelvins (minus 452 degrees Fahrenheit), the researchers applied a range of electrical voltages to the tiny top and bottom gates of the device. As they expected, when they applied a high vertical electrical field to both the top and bottom gates, an electron filled each cell of the graphene/boron nitride device. This caused the electrons to stabilize and stay in place, and this “localization” of electrons turned the device into a Mott insulator.
Then, they applied an even higher electrical voltage to the gates. To their delight, a second reading indicated that the electrons were no longer stable. Instead, they were shuttling about, moving from cell to cell, and conducting electricity without loss or resistance. In other words, the device had switched from the Mott insulator phase to the superconductor phase.
Chen explained that the boron nitride moiré superlattice somehow increases the electron-electron interactions that take place when an electrical voltage is applied to the device, an effect that switches on its superconducting phase. It’s also reversible – when a lower electrical voltage is applied to the gates, the device switches back to an insulating state.
The multitasking device offers scientists a tiny, versatile playground for studying the exquisite interplay between atoms and electrons in exotic new superconducting materials with potential use in quantum computers—computers that store and manipulate information in qubits, which are typically subatomic particles such as electrons or photons—as well as new Mott insulator materials that could one day make tiny 2D Mott transistors for microelectronics a reality.
“This result was very exciting for us. We never imagined that the graphene/boron nitride device would do so well,” Chen said. “You can study almost everything with it, from single particles to superconductivity. It’s the best system I know of for studying new kinds of physics,” Chen said.
This study was supported by the Center for Novel Pathways to Quantum Coherence in Materials (NPQC), an Energy Frontier Research Center led by Berkeley Lab and funded by the DOE Office of Science. NPQC brings together researchers at Berkeley Lab, Argonne National Laboratory, Columbia University, and UC Santa Barbara to study how quantum coherence underlies unexpected phenomena in new materials such as trilayer graphene, with an eye toward future uses in quantum information science and technology.
Also contributing to the study were researchers from Shanghai Jiao Tong University and Nanjing University, China; the National Institute for Materials Science, Japan; and the University of Seoul, Korea.
