Lining Up the Surprising Behaviors of a Superconductor with One of the World's Strongest Magnets
August 9, 2018 | Brookhaven National LaboratoryEstimated reading time: 6 minutes
“Brookhaven Lab’s key contribution to this study is this material synthesis platform,” said Bozovic. “It allows us to tailor the chemical composition of the films for different studies and provides the foundation for us to observe the true properties of superconducting materials, as opposed to properties induced by sample defects or impurities.”
The scientists then patterned the thin films onto strips containing voltage leads so that the amount of electrical current flowing through LSCO under an applied magnetic field could be measured.
They conducted initial magnetoresistivity measurements with two 9 Tesla magnets at Brookhaven Lab—for reference, the strength of the magnets used in today’s magnetic resonance imaging (MRI) machines are typically up to 3 Tesla. Then, they brought their best samples (those with the best structural and transport qualities) to the Pulsed Field Facility. Located at DOE’s Los Alamos National Laboratory, this international user facility is part of the National High Magnetic Field Laboratory, which houses some of the strongest magnets in the world. Scientists at the Pulsed Field Facility placed the samples in an 80 Tesla pulsed magnet, powered by quick pulses, or shots, of electrical current. The magnet produces such large magnetic fields that it cannot be energized for more than a very short period of time (microseconds to a fraction of a second) without destroying itself.
“This large magnet, which is the size of a room and draws the electricity of a small city, is the only such installation on this continent,” said Bozovic. “We only get access to it once a year if we are lucky, so we chose our best samples to study.”
In October, the scientists will get access to a stronger (90 Tesla) magnet, which they will use to collect additional magnetoresistance data to see if the linear relationship still holds.

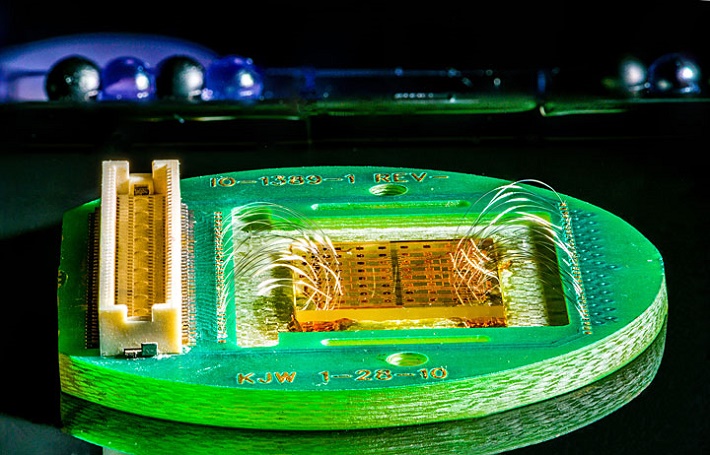

An example of a typical device that the scientists use to measure electrical resistivity as a function of temperature and magnetic field. The scientists grew the film via atomic layer-by-layer molecular beam epitaxy, patterned it into a device, and wire bonded it to a chip carrier.
“While I do not expect to see something different, this higher field strength will allow us to expand the range of doping levels at which we can suppress superconductivity,” said Bozovic. “Collecting more data over a broader range of chemical compositions will help theorists formulate the ultimate theory of high-temperature superconductivity in cuprates.”
In the next year, Bozovic and the other physicists will collaborate with theorists to interpret the experimental data.
“It appears that the strongly correlated motion of electrons is behind the linear relationship we observed,” said Bozovic. “There are various ideas of how to explain this behavior, but at this point, I would not single out any of them.”
Brookhaven National Laboratory is supported by the Office of Science of the U.S. Department of Energy. The Office of Science is the single largest supporter of basic research in the physical sciences in the United States, and is working to address some of the most pressing challenges of our time. For more information, please visit science.energy.gov.
