Topological Matters: Toward a New Kind of Transistor
December 12, 2018 | Berkeley LabEstimated reading time: 4 minutes

Billions of tiny transistors supply the processing power in modern smartphones, controlling the flow of electrons with rapid on-and-off switching.
But continual progress in packing more transistors into smaller devices is pushing toward the physical limits of conventional materials. Common inefficiencies in transistor materials cause energy loss that results in heat buildup and shorter battery life, so researchers are in hot pursuit of alternative materials that allow devices to operate more efficiently at lower power.
Now, an experiment conducted at the U.S. Department of Energy’s Lawrence Berkeley National Laboratory (Berkeley Lab) has demonstrated, for the first time, electronic switching in an exotic, ultrathin material that can carry a charge with nearly zero loss at room temperature. Researchers demonstrated this switching when subjecting the material to a low-current electric field.

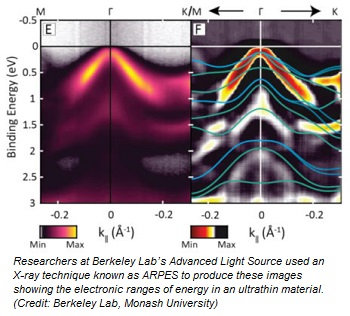

The team, which was led by researchers at Monash University in Australia and included Berkeley Lab scientists, grew the material from scratch and studied it with X-rays at the Advanced Light Source (ALS), a facility at the U.S. Department of Energy’s Lawrence Berkeley National Laboratory (Berkeley Lab).
The material, known as sodium bismuthide (Na3Bi), is one of two materials that is known to be a “topological Dirac semimetal,” meaning it has unique electronic properties that can be tuned to behave in different ways – in some cases more like a conventional material and in other cases more like a topological material. Its topological properties were first confirmed in earlier experiments at the ALS.
Topological materials are considered promising candidates for next-generation transistors, and for other electronics and computing applications, because of their potential to reduce energy loss and power consumption in devices. These properties can exist at room temperature—an important distinction from superconductors that require extreme chilling—and can persist even when the materials have structural defects and are subject to stress.
Materials with topological properties are the focus of intense research by the global scientific community (see a related article), and in 2016 the Nobel Prize in physics was awarded for theories related to topological properties in materials.
The ease in switching the material studied at the ALS from an electrically conducting state to an insulating, or non-conducting state, bode well for its future transistor applications, said Sung-Kwan Mo, a staff scientist at the ALS who participated in the latest study. The study is detailed in the Dec. 10 edition of the journal Nature.
Another key aspect of the latest study is that the team from Monash University found a way to grow it extremely thin, down to a single layer arranged in a honeycomb pattern of sodium and bismuth atoms, and to control the thickness of each layer they create.
Page 1 of 2
