Molten Storage and Thermophotovoltaics Offer New Solar Power Pathway

Estimated reading time: 4 minutes

A new wrinkle on an old technology – solid-state thermophotovoltaics (TPV) – could provide a high-efficiency alternative for directly converting high-temperature heat from concentrated solar thermal to utility-scale electricity.

New computer modeling suggests that high temperature TPV conversion – which captures infrared radiation from very hot surfaces – could one day rival combined-cycle turbine systems when combined with thermal storage using liquid metal at temperatures around 1,300 degrees Celsius. Advances in high-temperature components and improved system modeling, combined with the potential for conversion costs an order of magnitude lower than those of turbines, suggest that TPV could offer a pathway for efficiently storing and producing electrical power from solar thermal sources, a new study suggests.

The underlying technologies of high temperature storage and thermophotovoltaic conversion could also be used to produce grid-scale batteries able to rapidly supplement other power sources by storing heat for quick conversion to electricity. The research, supported by ARPA-E, was reported July 4 in the journal Energy and Environmental Science by researchers at the Georgia Institute of Technology.

“The goal for our study was to provide a heat transfer and thermodynamic perspective on a system that combines concentrated solar power (CSP) with thermal storage and TPV to show that such a system is worthy of renewed attention,” said Asegun Henry, an assistant professor in the George W. Woodruff School of Mechanical Engineering at Georgia Tech. “In the context of the full system, we suggest that the efficiency could one day rival the best heat engines available on planet today.”

TPV operates on the same principle as solar cells in wide use today, but converts photons at infrared wavelengths rather than those in the visible spectrum. Infrared is the predominant kind of heat and light emitted by heaters that glow red-hot.

Most research reported in the energy literature suggests that the conversion rate of TPV would be less than 20 percent, not competitive with other heat engines. But Henry believes those calculations do not properly consider the conversion wavelengths or account for efficiencies possible when the full heat delivery system is considered.

“The entire system could be quite efficient if we understand where the heat is flowing and design appropriately,” Henry said. “We believe there is a pathway to make these TPV cells an order of magnitude cheaper than turbines for converting thermal energy to electricity.”

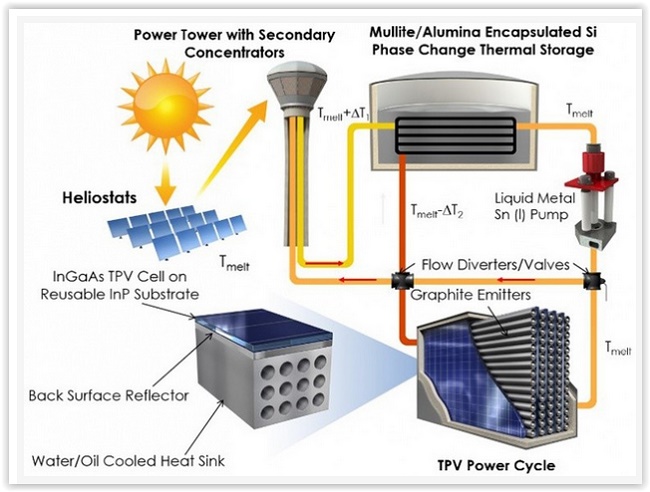

The heat would be supplied by a CSP system collecting the sun’s thermal energy using reflectors. The heat would be used to melt silicon, which could be stored in large insulated reservoirs until needed; the heat would then be released as the silicon solidifies. By moving the TPV cells when their power isn’t needed, the system could be rapidly switched on and off to supplement electricity from wind or direct solar PV sources, Henry said.

“It’s the dream of utility companies to have a resource that could go from zero to full power in a matter of seconds,” he said. “With the right insulation and shading of the cells, we could switch them on and off faster than any other conversion technology.”

The critical challenge to making renewable energy competitive with fossil fuels at the utility scale is making the electricity dispatchable. The cost advantages of thermal storage over electrochemical storage also make a TPV with thermal energy storage (TES) system attractive for converting and storing energy for use on the grid, said Hamid Reza Seyf, a graduate research assistant who did the system modeling.
