Electric Skyrmions Charge Ahead for Next-Generation Data Storage
April 19, 2019 | Berkeley LabEstimated reading time: 6 minutes
When you toss a ball, what hand do you use? Left-handed people naturally throw with their left hand, and right-handed people with their right. This natural preference for one side versus the other is called handedness and can be seen almost everywhere – from a glucose molecule whose atomic structure leans left, to a dog who shakes “hands” only with her right.
Handedness can be exhibited in chirality – where two objects, like a pair of gloves, can be mirror images of each other but cannot be superimposed on one another. Now a team of researchers led by Berkeley Lab has observed chirality for the first time in polar skyrmions – quasiparticles akin to tiny magnetic swirls – in a material with reversible electrical properties. The combination of polar skyrmions and these electrical properties could one day lead to applications such as more powerful data storage devices that continue to hold information – even after a device has been powered off. Their findings were reported this week in the journal Nature.
“What we discovered is just mind-boggling,” said Ramamoorthy Ramesh, who holds appointments as a faculty senior scientist in Berkeley Lab’s Materials Sciences Division and as the Purnendu Chatterjee Endowed Chair in Energy Technologies in Materials Science and Engineering and Physics at UC Berkeley. “We hadn’t planned on making skyrmions. So for us to end up making a chiral skyrmion is exciting.”

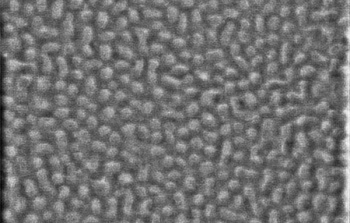

STEM images of a strontium titanate/lead titanate superlattice. (Credit: Berkeley Lab)
When the team of researchers – co-led by Ramesh and Lane Martin, a staff scientist in Berkeley Lab’s Materials Sciences Division and a professor in Materials Science and Engineering at UC Berkeley – began this study in 2016, they had set out to find ways to control how heat moves through materials. So they fabricated a special crystal structure called a superlattice from alternating layers of lead titanate (an electrically polar material, whereby one end is positively charged and the opposite end is negatively charged) and strontium titanate (an insulator, or a material that doesn’t conduct electric current).
But once they took STEM (scanning transmission electron microscopy) measurements of the lead titanate/strontium titanate superlattice at the Molecular Foundry, a U.S. DOE Office of Science User Facility at Berkeley Lab that specializes in nanoscale science, they saw something strange that had nothing to do with heat: Bubble-like formations had cropped up all across the device.
Bubbles, Bubbles Everywhere
So what were these “bubbles,” and how did they get there?
Those bubbles, it turns out, were polar skyrmions – or textures made up of opposite electric charges known as dipoles. Researchers had always assumed that skyrmions would only appear in magnetic materials, where special interactions between magnetic spins of charged electrons stabilize the twisting chiral patterns of skyrmions. So when the Berkeley Lab-led team of researchers discovered skyrmions in an electric material, they were astounded.

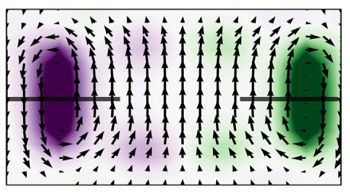

Simulation of the cross-section in the middle of the polar-skyrmion bubble. (Credit: Berkeley Lab)
Through the researchers’ collaboration with theorists Javier Junquera of the University of Cantabria in Spain, and Jorge Íñiguez of the Luxembourg Institute of Science and Technology, they discovered that these textures had a unique feature called a “Bloch component” that determined the direction of its spin, which Ramesh compares to the fastening of a belt – where if you’re left-handed, the belt goes from left to right. “And it turned out that this Bloch component – the skyrmion’s equatorial belt, so to speak – is the key to its chirality or handedness,” he said.
While using sophisticated STEM at Berkeley Lab’s Molecular Foundry and at the Cornell Center for Materials Research, where David Muller of Cornell University took atomic snapshots of skyrmions’ chirality at room temperature in real time, the researchers discovered that the forces placed on the polar lead titanate layer by the nonpolar strontium titanate layer generated the polar skyrmion “bubbles” in the lead titanate.
“Materials are like people,” said Ramesh. “When people get stressed, they respond in unpredictable ways. And that’s what materials do too: In this case, by surrounding lead titanate by strontium titanate, lead titanate starts to go crazy – and one way that it goes crazy is to create polar textures like skyrmions.”
