Low-temperature Solder Paste Process Advantages
October 31, 2018 | Traian C. Cucu, Alpha Assembly Solutions, and Ioan Plotog and Mihai Branzei, Politechnica University of BucharestEstimated reading time: 7 minutes

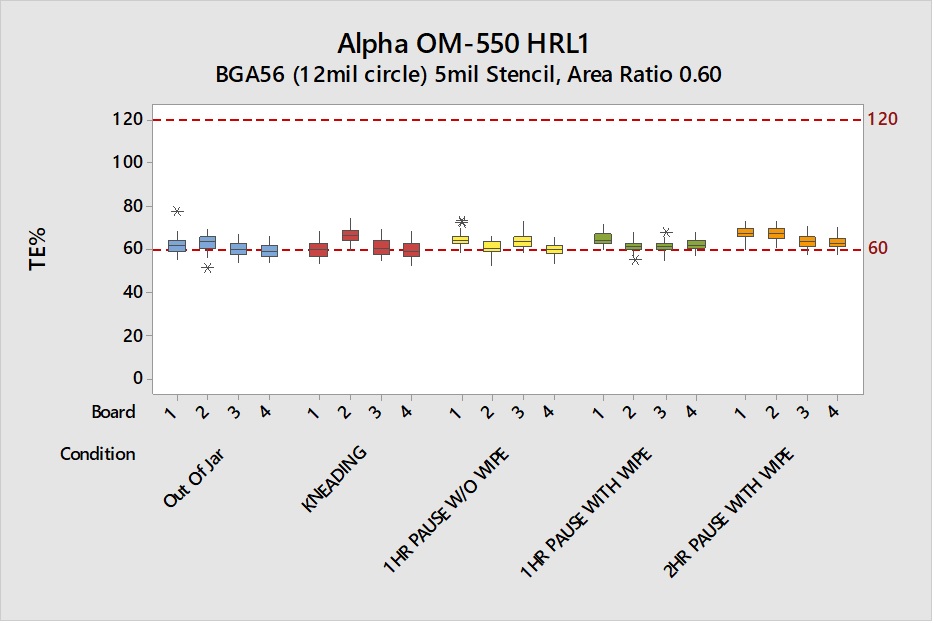

Figure 5: Response to pause data for AR=0.6

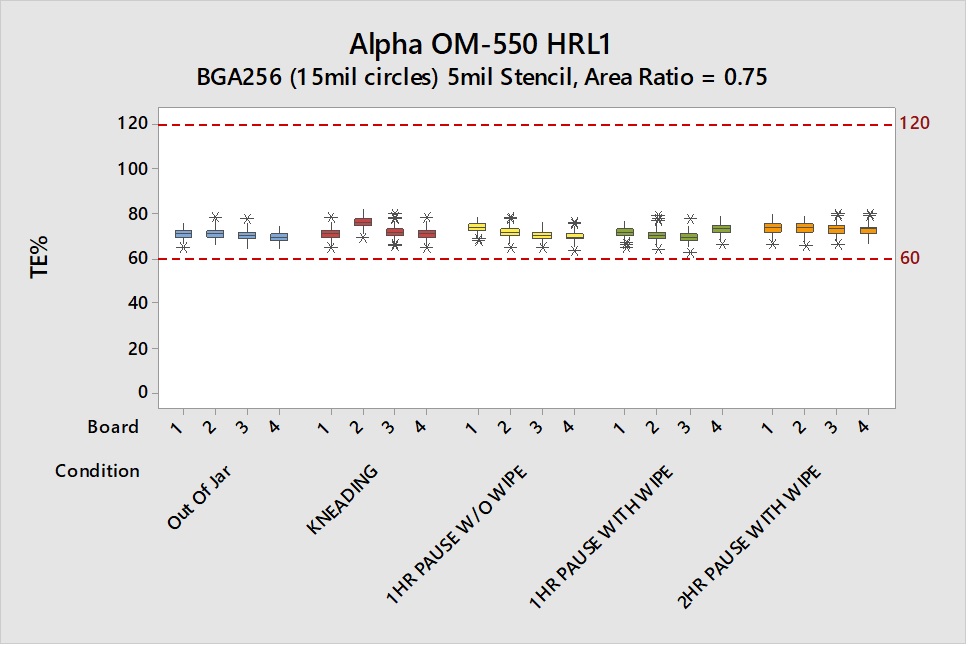

Figure 6: Response to pause data for AR=0.75

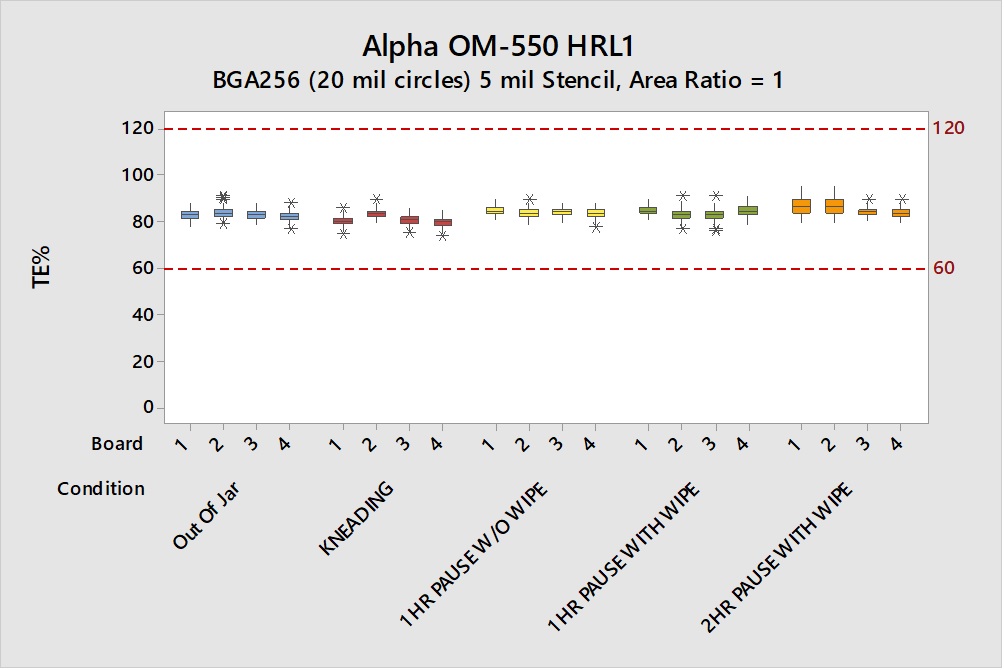

Figure 7: Response to pause data for AR=1.
Stencil Life
Stencil life was evaluated by measuring the printed solder paste volumes for a given aperture. The classification was made based on the solder paste volume variability between the different printing conditions. The time between prints was used as a process variable (one-hour intervals up to 12-hour intervals were used). Figure 8 shows the data for the 12-mil circles with AR=0.6, Figure 9 presents the data for 15-mil circles with AR=0.75, and Figure 10 presents the data for 20-mil circles with AR=1.

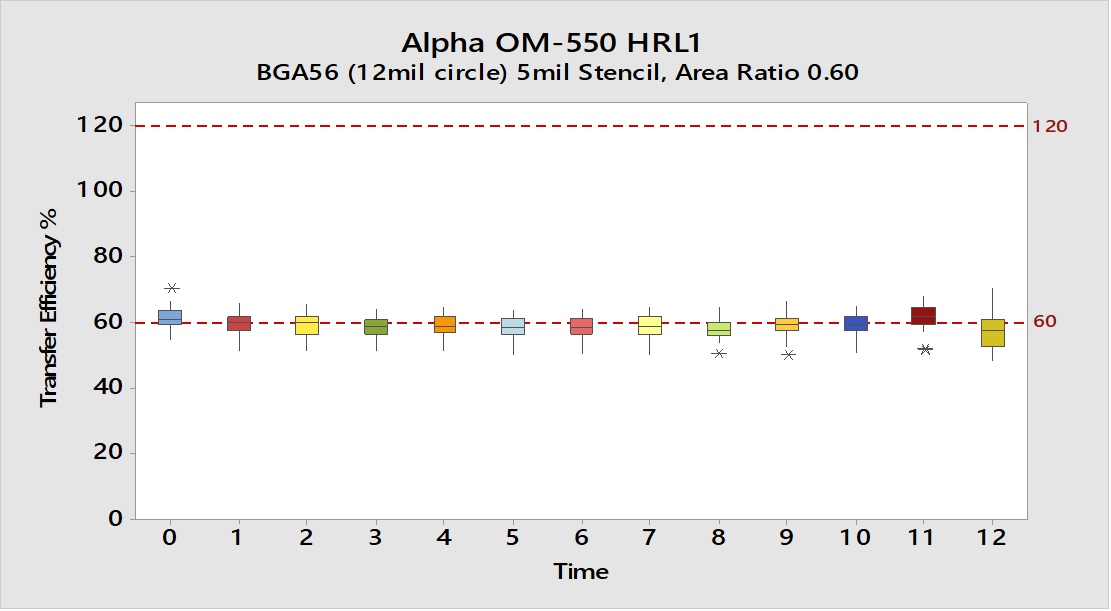

Figure 8: Stencil life data for AR=0.6.

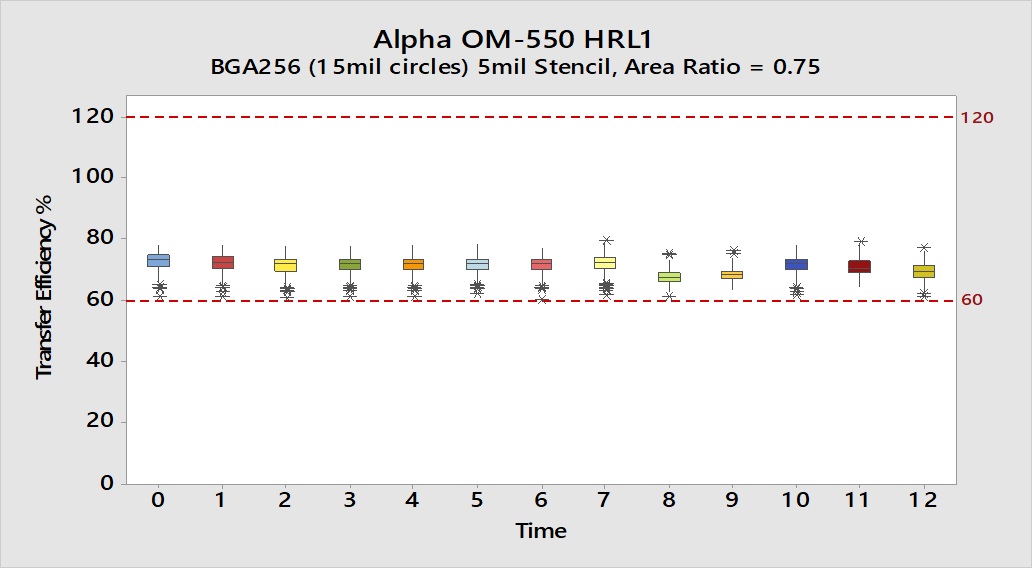

Figure 9: Stencil life data for AR=0.75.

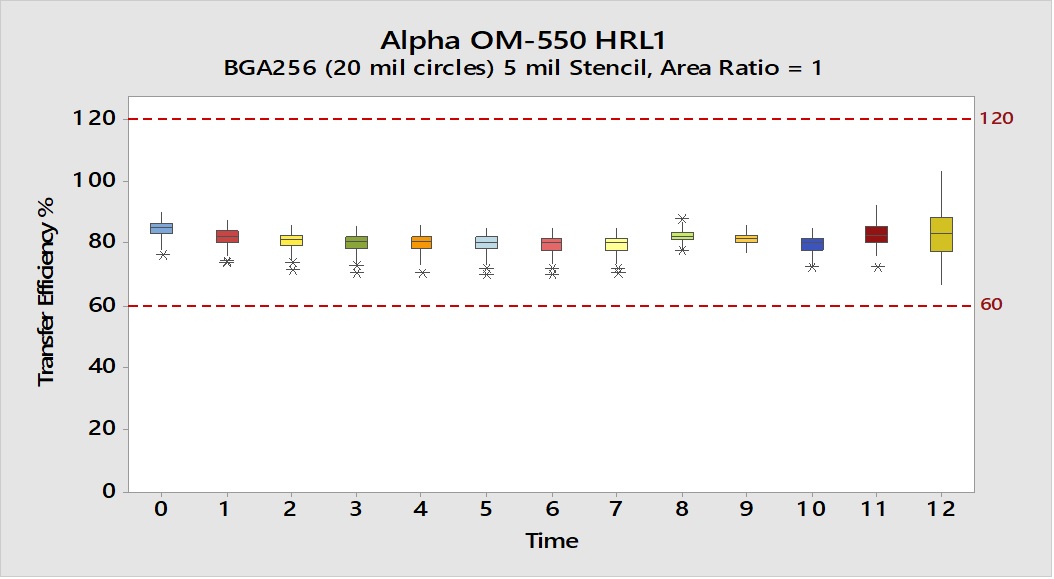

Figure 10: Stencil life data for AR=1.
Voiding
For the reflow step, a seven-zone Vitronics oven was employed. The reflow profile employed for the low-temperature alloys and SAC305 spheres is shown in Figure 11.

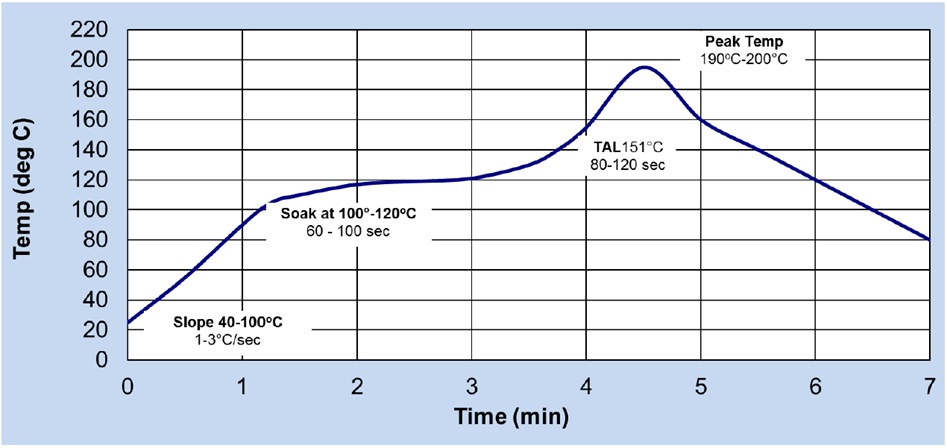

Figure 11: Low-temperature reflow profile.
