A Robot with a Firm, Yet Gentle Grip
September 25, 2019 | University at BuffaloEstimated reading time: 3 minutes
Human hands are remarkably skilled at manipulating a range of objects. We can pick up an egg or a strawberry without smashing it. We can hammer a nail.
One characteristic that allows us to perform a variety of tasks is the ability to alter the firmness of our grip, and UB engineers have developed a two-fingered robotic hand that shares this trait.
The design of the robotic hand enables it to absorb energy from impacts during collisions. This prevents whatever the robot is holding from breaking, and also makes it safer for people to work with and near the machines.
Such grippers would be a valuable asset for human-robot partnership in assembly lines in the automotive, electronic packaging and other industries, says Ehsan Esfahani, associate professor in the Department of Mechanical and Aerospace Engineering, School of Engineering and Applied Sciences.
“Our robotic gripper mimics the human hand’s ability to adjust the stiffness of the grip. These grippers are designed for collaborative robots that work together with people,” Esfahani says. “They’re going to be helpers, so they need to be safe, and variable stiffness grippers help to achieve that goal.”
A new study published online on Sept. 10 in IEEE Transactions on Industrial Electronics highlights the device’s safe design, including through experiments showing how the gripper’s shock-absorbing features keep a spaghetti stick from breaking during a collision.

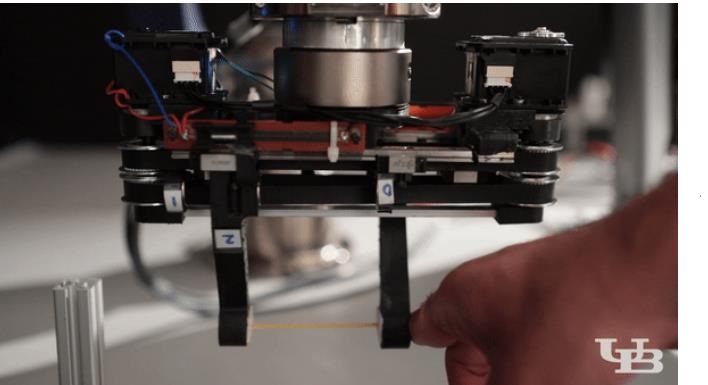

Animation of a spaghetti stick staying intact as it's held between two mechanical fingers that hit a fixed object.
A robotic gripper developed in the lab of Professor Ehsan Esfahani at University at Buffalo uses repulsion between magnets to adjust the stiffness of its grip and absorb energy from collisions. This helps improve safety in industrial settings, and prevents objects like this spaghetti stick from breaking. Credit: Douglas Levere / University at Buffalo
Magnets Give this Robot a Soft Touch
Esfahani explains that magnets are the secret behind the robotic gripper’s versatility.
Instead of having two fingers that are fixed in place, each of the gripper’s fingers has a magnetic base that sits between two neodymium magnets that repulse, or push against, the finger.
A robotic gripper developed in the lab of University at Buffalo engineer Ehsan Esfahani uses repulsion between magnets to adjust the stiffness of its grip, improving safety. The gripper can grasp objects as fragile as a berry or an egg. Credit: Douglas Levere / University at Buffalo
The air gap between the magnets acts like a spring, creating a little give when the hand picks up an object or collides with an external force. The stiffness of the grip can also be adjusted by increasing or decreasing the space between magnets.
In the new paper, Esfahani and Amirhossein Memar, a former UB PhD candidate in mechanical and aerospace engineering, report on these safety features.
In one set of tests, the engineers placed a short stick of spaghetti lengthwise between the fingers of the robotic hand. When the gripper crashed into a fixed object, the device detected the external force being applied, which caused the magnets to adjust their position, temporarily reducing the stiffness of the grip and allowing the gripper to absorb some of the energy from the collision.
The end result? The spaghetti stick stayed in one piece.
Next Steps in Development
Esfahani notes that the gripper his team is developing can be attached to commercially available robot arms that are already in use in many facilities. This could lower the cost of adapting the technology for companies interested in improving the safety and capabilities of existing machines.
Esfahani is launching a startup company to commercialize the gripper, licensing technology from UB.
His team has received $55,000 from the Buffalo Fund: Accelerator — funded by the Innovation Hub, which is administered by UB and supported by Empire State Development — to further develop the robotic hand. In addition to refining the current design of the gripper, the team may also explore advances such as adding a third finger.
Researchers who have been involved in designing and testing the gripper include PhD student Sri Sadhan Jujjavarapu and Memar, the co-author on the new spaghetti stick study, who has received his PhD from UB and is now a postdoctoral research scientist at Facebook Reality Labs.
