Parts 1, 2, and 3 of this series examined the technical foundations, application landscape, and strategic imperatives surrounding the convergence of flexible PCBs and advanced semiconductor packaging. Part 4 turns to the factory floor: What must change in manufacturing processes, equipment, and quality systems to bring this convergence from prototype to production scale?
Process Readiness at the Flex–Package Interface

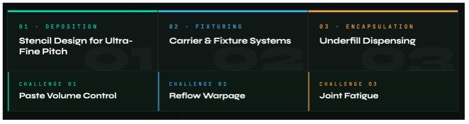

The assembly of advanced packages onto flexible substrates demands process controls that exceed conventional PCB manufacturing norms. Fine-pitch solder deposition, controlled-atmosphere reflow, and precision placement must all be adapted for inherently compliant substrates. Key process gaps that manufacturers must address include:
- Stencil design for ultra-fine pitch on flex, where substrate deflection affects paste volume consistency
- Fixture and carrier systems that maintain dimensional stability during reflow without constraining flex behavior
- Underfill dispensing processes calibrated for the compliance mismatch between silicon packages and polymer substrates
Equipment Investment and Qualification
Scaling flex–packaging integration requires targeted capital investment. High-accuracy pick-and-place systems with active vision correction, laser-based soldering for heat-sensitive areas, and advanced AOI systems capable of inspecting warped or curved surfaces are among the equipment upgrades most commonly required. Qualification of this equipment against hybrid assembly specifications, not traditional PCB or package-level standards, is essential before production launch.
Quality Systems and In-Process Control
Quality management for hybrid flex–package assemblies must evolve beyond legacy approaches. Effective in-process control strategies include:
- 3D SPI (solder paste inspection) adapted for flex substrate topology
- Post-reflow X-ray inspection of BGA and LGA joints on compliant surfaces
- Mechanical bend and thermal cycle qualification protocols specific to the flex–package assembly
Conclusion
The technology case for flex–packaging integration is well established. The remaining challenge is execution at volume. Manufacturers who invest now in process development, equipment qualification, and adapted quality systems will be positioned to serve the growing wave of demand from automotive, medical, and high-performance computing customers. Production readiness, not just design capability, is the next frontier for this convergence.
This article originally appeared in the May 2026 issue of I-Connect007 Magazine, located here.
