New Technology Can Expand LED Lighting

Estimated reading time: 3 minutes

Highly efficient, light-emitting diodes (LEDs) could slash the world’s electricity consumption. They are already sold in stores, but more widespread adoption of the technology has been hindered by high costs due to limited availability of raw materials and difficulties in achieving acceptable light quality. But researchers will report today that they have overcome these obstacles and have developed a less expensive, more sustainable white LED.

The scientists will discuss their research at the 250th National Meeting & Exposition of the American Chemical Society (ACS). ACS is the world’s largest scientific society. The national meeting, which takes place here through Thursday, features more than 9,000 presentations on a wide range of science topics.

“If more people in the U.S. used LEDs in their homes and businesses, the country’s electricity consumption could be cut in half,” says Zhichao Hu, Ph.D., a member of the Rutgers University team that performed the research under the direction of Jing Li, Ph.D. At that time, he was a graduate student. He is now a postdoc at Rutgers and is studying the recovery of rare-earth elements there. Zhichao adds that studies show substituting one LED light for a common incandescent light bulb in every American household could save the nation $700 million annually in energy costs.

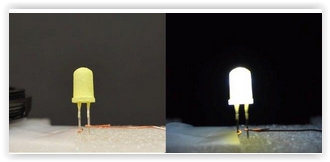

To achieve the common, soft white light that consumers expect, current LED technologies typically use a single semiconductor chip to produce light, usually blue, and then rely on a yellow-emitting “phosphor” coating to shift the color to white. That’s because LEDs do not emit a white light. The phosphor is made from materials, such as cerium-doped yttrium aluminum garnet, that are composed of rare-earth elements. These elements are expensive and in limited supply, since they are primarily available only from mining operations outside the U.S. Additionally, the light output of these phosphors tends to be harsh, “cold” colors.

Li’s team is developing hybrid phosphor-based technologies that are much more sustainable, efficient and low-cost. They combine common, earth-abundant metals with organic luminescent molecules to produce phosphors that emit a controllable white light from LEDs. By varying the metal and organic components, the researchers can systematically tune the color of the phosphors to regions of the visible light spectrum that are most acceptable to the human eye, Hu and Li note. The team is continuing to experiment and develop other rare-earth-free LED phosphors based on different metals and organic compounds.

Many material combinations are possible, so they use a computational approach to initially sort through the possibilities and to predict what color of light the various metals and organics combinations will emit. They then test the best combinations experimentally.

Their approach allows a systematic fine tuning of band gaps and optical emissions that cover the entire visible range, including yellow and white colors. As a result, their LEDs can be fine-tuned to create a warmer white light, similar to cheaper but inefficient incandescent lights. Their approach shows significant promise for use in general lighting applications.

“One of challenges we had to overcome was to figure out the right conditions to synthesize the compound,” Hu notes. “Like cooking, the synthesis requires a ‘recipe.’ It’s often not the case that one can simply mix the starting materials together and get the desired product. We optimized the reaction conditions — temperature and the addition of a solvent — and developed an easy procedure to make the compound with high yield.”

Experiments with some materials have shown that the team’s technology can cut LED costs by as much as 90 percent from current methods that rely on rare-earth elements. They have several granted and pending U.S. patents and are exploring manufacturing possibilities.
