All About Flex: Plating Process Options for Flexible Circuits
June 16, 2016 | Dave Becker, All Flex Flexible Circuits LLCEstimated reading time: 6 minutes

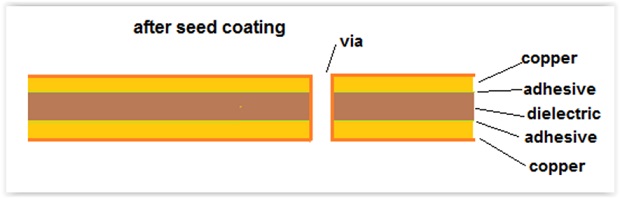

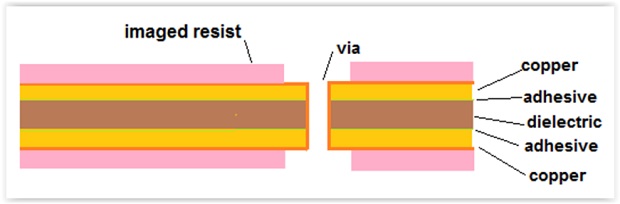

After the seed coating, photoresist is imaged so it exposes only the pads that capture the via.

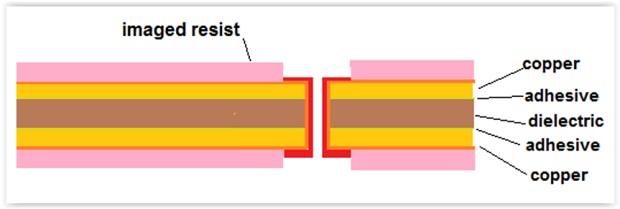

Copper is electroplated in the vias and pad areas as shown below.

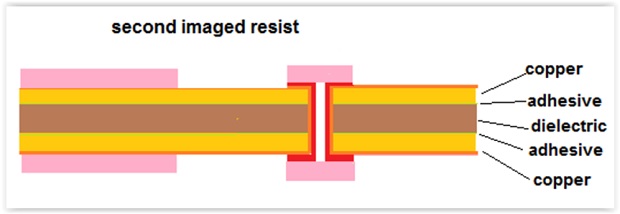

The resist is stripped and the panel goes through a second image resist operation.

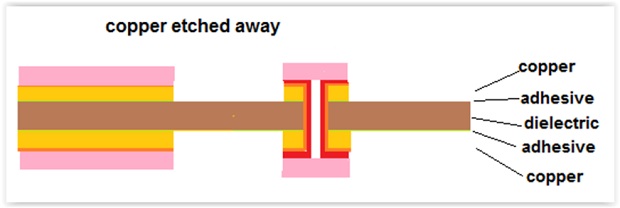

The panel then goes through an etch-strip operation—the image below shows the copper etched away. The resist is “tented” over the via to protect the through-holes from etchant.

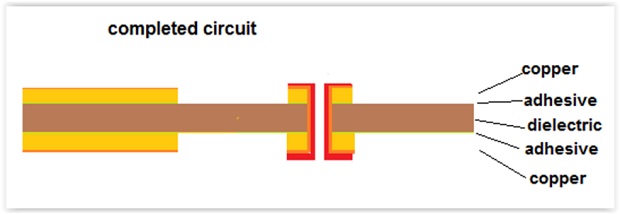

The image below shows the resist stripped away leaving the final circuit pattern.
Plating, imaging and etching are basic operations used in flexible circuit and PCB fabrication. The sequence and combination of these operations can result in significantly different circuit configurations. Changing the order of processes can result in different plating thickness profiles. These operations are also dependent on each other for attaining desired yields. The interactions among various process steps, and achieving desired plating results, is understandably complex. We highly recommend involvement of a supplier for technical questions about specific applications.
Dave Becker is the V.P. of sales and marketing at All Flex Flexible Circuits and Heaters. To contact Becker, or read past columns, click here.
