Process, Design and Material Factors for Voiding Control for Thermally Demanding Applications

Estimated reading time: 5 minutes

Solder voiding is a common phenomenon across all semiconductor packaging and electronic board assemblies. Voids are a troublesome defect in assemblies created using surface mount technology. Voids can interfere with electric signals, can be insulators when heat dissipation is required, and they can also be the source of crack propagation and early failure of an assembly when occurring near the pad surface. The acceptable levels for voiding vary upon on the end-application and environment it's used in. In the case of thermally demanding harsh environment applications such as automotive and outdoor LED lighting, void control is required in order to optimize the performance and extend the lifetime of these components. The lower the voiding on these thermal and electrical pads, the better the connection to the PCB and subsequent layers.

There are many factors that influence void frequency and size. This study focuses on several process, design and materials selection considerations which control or potentially reduce voiding to meet industry and end-market acceptance criteria. More specifically, package design, reflow profiles, and solder paste chemistry are discussed in the form of application studies. Commercial mid-power PLCC and high-power ceramic LED packages on aluminum metal core PCBs additionally BGA, D-Pak, and MLF on FR4 PBCs were used for these case studies.

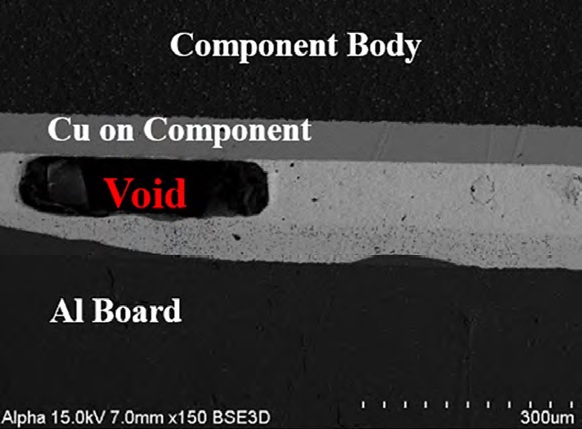

Figure 1: Void entrapment within the solder layer.

The global acceptance of LED-based light sources has propelled the energy efficient technology to enter numerous markets and end applications including high power lighting segments. Examples include exterior automotive headlamps, roadway/street lighting, industrial high bay lights, architectural and entertainment lighting. As a result, customer expectations of maintaining efficiency, government regulations, safety, and reducing overall systems/replacement costs are important to satisfy the adoption rates.

For these high reliability and lifetime requirements, it is critical to have excellent assembly interconnect reliability to address the above needs.

The role of interconnects in LED Level 1 (chip/die attach) and Level 2 (package on board attach) is fundamentally to:

• Convey power and information efficiently and reliably over the rated life
• Thermal management—get the heat out faster and reliably over the rated life.
• Enable more light output, consistently, for longer time for the same package and system footprint.
• Capable of being processed under robust processing conditions i.e. multiple reflow assembly.

Figure 2: High-power LED heat path.

Voids, which are pockets of trapped gasses from solder flux, can cause issues for electric signals, can act as thermal resistors when heat dissipation is required, and they can also be the source of crack propagation and early failure of an assembly. Figure 1 depicts large area voids in the bulk solder layer. The phenomenon of void occurrence is a complex system; there are many factors that drive various levels of voiding. Examples include: chemistry, reflow profile, volume of material, solderable pad finish and design of the component pads (thermal and electrical).

For level 1 LED chip attach assemblies the use of traditional solders can be seen as an advantage from both ease of processing and cost. However, the importance for thermal management is critical for high and ultra-high-power LEDs. The junction temperature in the LED increases with increasing drive current. Since more than 50% of electrical input power is dissipated as heat due to efficiency droop at high drive currents in LEDs, this rise in the junction temperature reduces the light output by increasing the probability of non-radiative recombination causing drop in efficiency and rated lifetime. Therefore, the dissipated heat needs to be removed from the junction in order to maintain the light conversion efficiency and light output from the high-power LED package. The various components in the heat flow path in a high-power LED package are shown in Figure 2.

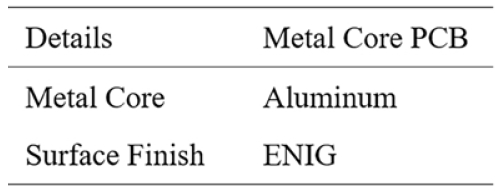

Table 1: Test vehicle details.

Additionally, for Level 1, the requirements for processing LED packages with solder-based die attach on boards as a Level 2 assembly requires multiple soldering reflow capability. With multiple reflows of the same solder bulk layer, this may increase the levels of voids impacting the overall reliability of the stack at the Level 1 layer.

For Level 2 package on-board assemblies LEDs are becoming more integrated with various traditional IC components such as BGAs, D-Paks and MLFs being directly mounted on the same board. This is driven by the need for lighting systems to go beyond general illumination providing more complex features such as control, sensing and modulation. Large area voids can create issues in the electrical signal or generate cracks due to thermal cycling/fatigue thus need for a more robust, low voiding interconnects are required at the Level 2 layer.

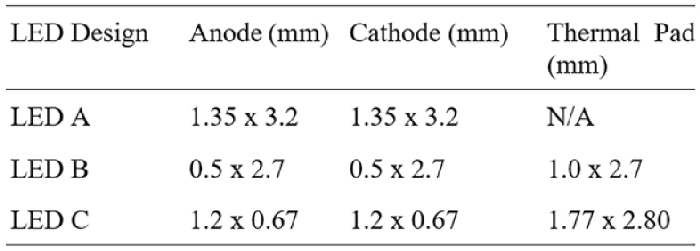

Table 2: LED pad dimensions (mm).

Experimental Procedure – Design Case

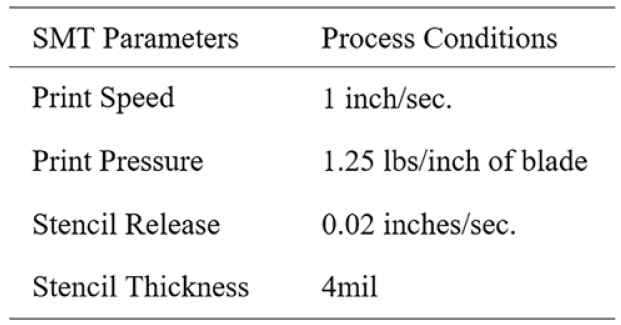

Table 3: Print conditions.

There are a variety of LED designs used in the industry ranging from design structure/size and package materials i.e. ceramic and plastic. The goal of this experiment is to observe the effect of voiding based on three varying structures with the key difference being the pad geometries. For example, a 2-pad design where the anode and cathode are symmetrical, a 3-pad high aspect ratio design where the central thermal pad is slightly larger in terms of total area and lastly, a 3-pad design where the central thermal pad is significantly larger in terms of total area when compare to the anode and cathode. Table 2 shows the total area and construction of the LED pads.

ASSEMBLY MATERIALS & COMPONENTS

Substrate

The substrate used in this study is a custom designed aluminum core PCB. The particular details for this board are shown in Table 1.

LED Components

For this study, three commercially available high-power LEDs were selected with varying pad geometries. The parameters for anode, cathode, and thermal pad dimensions for the LEDs are listed in Table 2. All dimensions are in millimeters. The LEDs were chosen to emulate common packages selected in high and ultra-high-power assemblies.

Solder Pastes

A commercially available no-clean solder paste was used for this study known using a type 4 particle size SAC-based alloy (38–20 Particle size in µm (80% min. between)).

PROCESS AND TEST METHOD

Equipment Processing Details

Solder paste printing was done using DEK Horizon 03iX printer with a 4 mil thick laser cut stainless steel stencil with a 1 to 1 ratio of aperture size to pad size. Stencil printing parameters used for all solder pastes are shown in Table 3.

Reflow Soldering

The soak reflow profile was used in this study shown in Figure 2 the temperatures are displayed in Table 4.

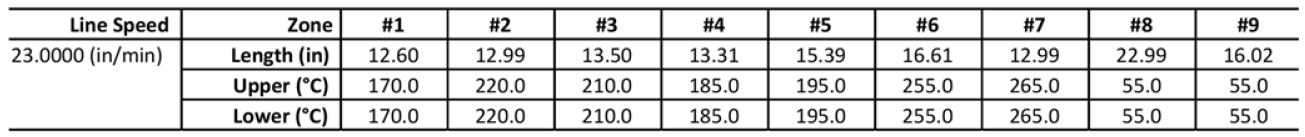

Table 4: Reflow profile used in study.

Test Method

To measure and quantify the voiding performance of the varying pastes and LED pad layouts, the assembled and reflowed boards were loaded into an X-ray analysis unit and programmed to quantify the area of each void as a percent of the total pad area and the number of voids under the package.
