Target Condition: From Warped to Wonderful—Balancing Your Life, Career, and Your PCBs

In the pursuit of a healthy work-life balance—and a healthy PCB design—one malefactor consistently stands in the way: stress.

In life, biological stress creeps in through packed calendars, buzzing notifications, and the tug-of-war between personal and professional demands. Everywhere we look, we’re offered quick formulas to tame it, but some of these cheeky, Western world life hacks are all contrived to keep our minds and bodies from warping under pressure.

For PCB designers, stress isn’t just a biological phenomenon. It appears alive and well in our PCB stackups, embedded in the very boards we design and every board that is fabricated and assembled. Mechanical PCB stress is quiet, invisible, and far less forgiving.

What Is Imbalance in PCB Design?
Much like humans, PCB manufacturing thrives on two things: consistency and symmetry. A healthy stackup, like a healthy lifestyle, avoids extremes.

A PCB is essentially a laminated lasagna of dissimilar ingredients, including epoxies, woven glass, copper, polyimides, adhesives, and coatings. During fabrication, these layers are heated, pressed, vacuum-sealed, and convinced to behave as a single unified structure. But when the panel cools, each material contracts at its own rate, tugging and pulling with its unique coefficient of thermal expansion. The tension is trapped, locked inside the stack like the stiff neck you get from too many hours in front of the laptop.

How flat that PCB remains throughout the entire process depends heavily on how well the designer balanced (or didn’t balance) the laminates in the stackup. It gets ugly when designers specify rock-solid IPC-6012 manufacturing flatness requirements, occasionally, even redundantly reinforced with bold, all-caps proclamations something like:

“PCB SHALL BE FLAT. BOW AND TWIST SHALL NOT EXCEED 0.75%.”

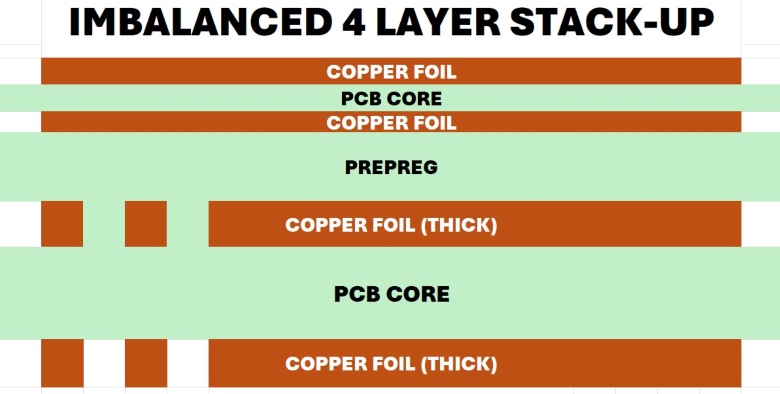

Then, on the very same drawing, they provide a layers and materials stackup detail so chaotically stratified it could make a geology major reconsider their field of study.

Effects of PCB Imbalance
Just as an overloaded schedule can warp a designer’s peace of mind, an unbalanced PCB stackup can warp an entire electronics project in both the short and long term.

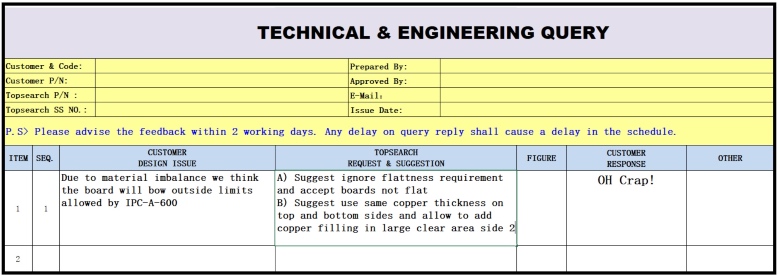

At the fabrication stage, the first line of defense is often the CAM engineer, who sends an engineering query back to the designer via purchasing, asking to deviate from the specified stackup. But sometimes the designer or engineer won’t budge. This happens more often than we’d like to admit.

What now? Fabricate the order? Imagine a PCB supplier staring at a half-million dollars’ worth of warped panels. Can a PCB panel that fails IPC-A-600 flatness limits be flattened into conformance? Technically, yes, but ethically?

There’s nothing in most process specs preventing a fabricator from adding a “creative” extra step, for example, rolling the warped PCB panel across the corner of a table to counteract the warp. Theoretically, a supplier could use this method to “flatten” panels back into spec.

I’m absolutely not suggesting any reputable fabricator actually does this. But if such a technique were applied, what happens downstream?

Downstream Impact of ‘Counter-flattened’ Panels
The EMS provider receives the shipment and performs first-article inspection. The panels are placed on the flat inspection surface. Astonishingly, they appear compliant as the hidden, opposing stresses hold steady. With no way to measure the artificial mechanical tension inside the laminate, the boards pass and move onto the production line.

Solder paste printing on Side A: No problem.
Pick-and-place: Still no problem.
The boards behave, for now.

But there’s something about heat that relaxes most everything. At the end of a PCB designer’s day, it’s a sauna, hot tub, or maybe those little stick-on heating pads. But for a stressed out, counter-flattened PCB? After a long trip riding in a FedEx van, getting inspected, smeared with solder paste, and covered with hundreds of tiny, cold SMT components, nothing beats a nice long run through the 210°C–260°C reflow oven.

Inside the oven, the stressed-out panel finally exhales: “Ahhhhh.” With the added thermal energy, the panel’s atoms reorganize, internal tensions release, and the board relaxes into its true shape. But for manufacturing and assembly, this true shape is not a good one.

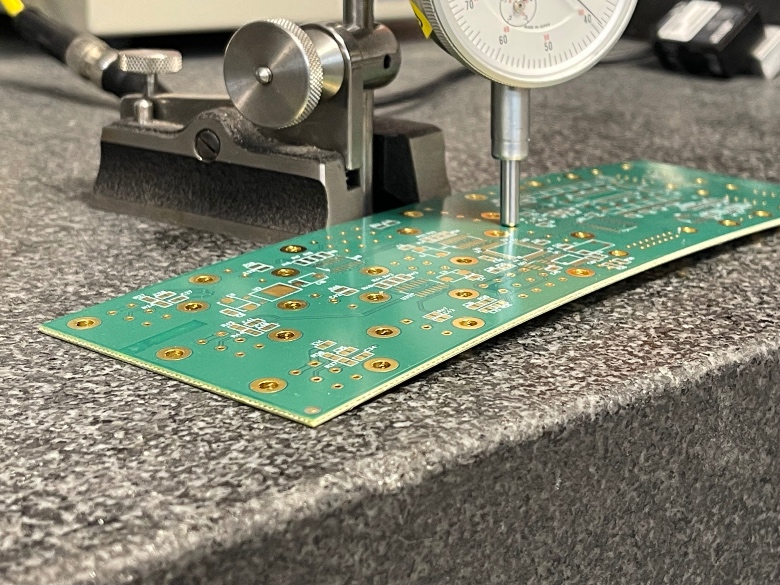

As the PCB cools, it emerges from the reflow oven looking like a potato chip and unusable for a second-side pass.

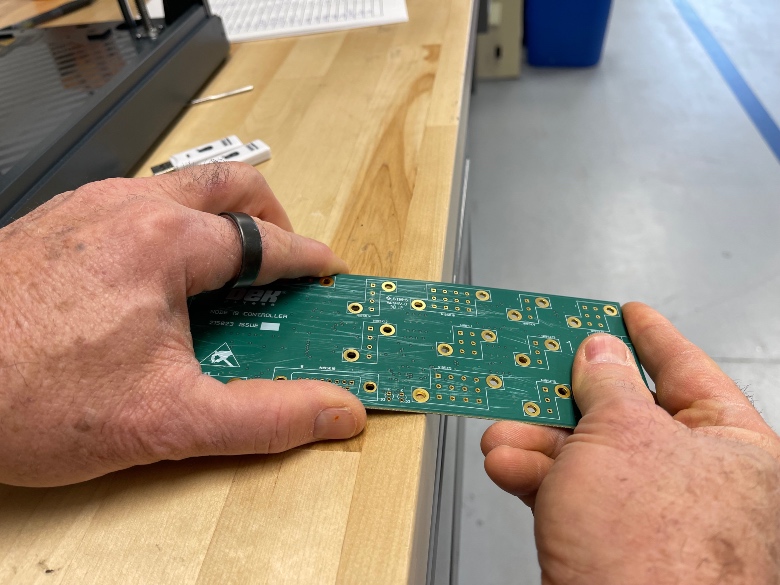

A warped panel can only continue forward if it’s a single-sided assembly. Flip a warped panel for printing on the second side, and the paste stencil will have problems making contact and sealing. Try to place parts on the second side, and the bounce and wobble become catastrophic. Components placed on one end will literally bounce off, while the other end is being populated.

Even if such a board somehow reaches final mechanical assembly, its last hope is that the mounting hardware forces it flat without twisting components and causing cracking failures. In essence, we put the warped PCB back into stress, starting a fresh cycle of potential short-term and long-term field failures.

Balance All Things
Why do we sometimes pursue success in one isolated metric at the expense of making our downstream stakeholders—PCB fabricators, EMS providers, even our own teammates—miserable?

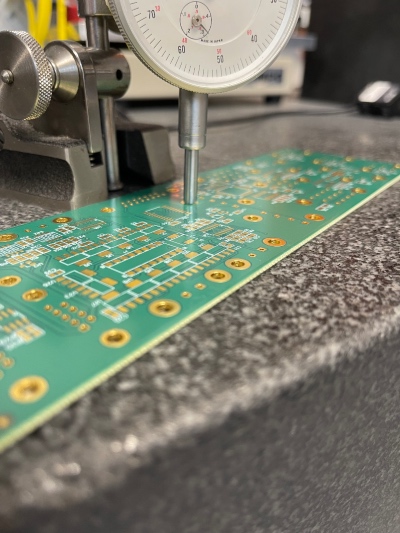

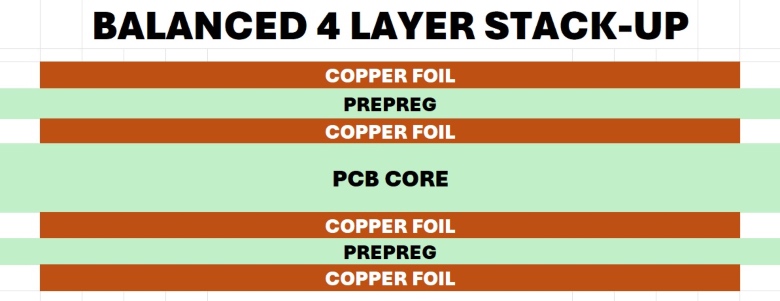

The message is clear and simple. The best practice for PCB DFM regarding layer stackup is to mirror laminates—copper foil, cores, and prepregs—so that they are equally distributed around the centerline of the PCB cross-section (Figure 6).

Is the message as equally simple regarding our work-life balance? We need to avoid hiding our own career-distorting, life-shortening stress. Stress sneaks in through overloaded projects, aggressive deadlines, incomplete data, or by misreading a material spec at 2 a.m. Do we mask or “flatten” it with unsustainable counterforces, such as denial, caffeine, or wishful thinking, instead of addressing the imbalance?

I often think about the wisdom of feng shui and the concept of chi. Surprisingly, the principles map beautifully to PCB design and manufacturing:

Declutter: Reduce clutter in your design and in your life. Congestion creates stagnation, confusion, and stress.

Clear pathways: Arrange components, routes, layer stackups, workflows, and communication channels to support smooth energy flow.

Natural light and air: Step out of the design cave regularly. Get sunlight, breathe, and reset.

There are numerous tools from both Eastern and Western traditions for achieving a healthy work-life balance. In design, manufacturing, and life, everything flows better when balance is built in rather than forced.

This column originally appeared in the December 2025 issue of Design007 Magazine.
