All About Flex: The Anatomy of a Flex Circuit Cutline

Numerous methods are used to create the cutline of a flexible circuit. With the various tooling options, the methods, process steps, tooling and technology are different. These differences affect the actual physics of cutting, and create slight variations on the circuit material.

In most cases, the material being cut is polyimide laminate consisting of multiple layers of monolithic polyimide film, adhesive, and copper. In cases where edge insulation (distance between traces and circuit outline) is required, no copper remains in the cutline area leaving only plastic film and adhesive on the edge of the circuit.

The following are the common methods of creating a circuit outline (i.e., cutline):

• Male/female hard tool die
• Steel rule die
• NC routing
• Laser ablation
• Combination methods

Each has different capabilities with respect to tolerances and through-put, and each method has a different level of tooling investment. The mechanics or physics of the cutting action is different among these methods. A cut edge examined under high-level magnification reveals the physical differences. These differences usually do not affect the form, fit and function of the part, although tolerances and specialty performance applications may encourage one method over another.

The following are the differences in the cutting action.

Male/Female Hard Tool

This cutting action is created by two metal surfaces meshing together to create a shearing action. These tools are often called “zero clearance” as the punch is constructed with a harder steel and slightly shears the cavity metal during the initial punching operation. A properly sharpened hard tool will provide an excellent cut surface over hundreds of thousands of die hits. The side view of the cutline would look very straight and uniform. Circuits requiring dynamic flexing over hundreds of thousands of cycles often adopt hard tools for cutline formation. Tolerances of

Steel Rule Die

Rule dies are analogous to a cookie cutter with one edge of the steel blade beveled. The cutting action is created by a high level of force concentrated in a very narrow area and causing a bursting action. The steel rule does not need to fully penetrate the material to effectively cut it. Under high magnification the side surface does not look as uniform as a hard tool cut; the side wall is not completely vertical and the exit surface may have a lip. Rule dies are also more likely to create polyimide slivers as a consequence of the bursting cutting action. Tolerances with rule dies are generally limited to about 0.005” or more.

NC Routing

The best way to describe the cutting action of routing is grinding. Routing bits are rapidly spinning and shredding the material in their path. An NC-routed cutline will look ragged when viewed under magnification. The degree of raggedness depends on the material stack-up, router speed and bit sharpness, and overall material thickness. Tolerances at 0.005” are possible with NC routing.

Laser Ablation

The laser focuses a high level of energy on a very small area causing rapid heating which partially burns and vaporizes the material. Under high magnification the side wall looks smooth as if it was slightly melted. Lasers have been increasingly adopted as they can cut sizes and shapes beyond the capability of the other methods. Lasers too may have limits in some applications, as it is quite frequently desirable to simultaneously cut the circuit and an applied pressure sensitive adhesive (PSA). While the laser will cut through the PSA, over time adhesive flow will cause re-attachment across the cut region. Lasers have uncanny accuracy, with 0.001” tolerances possible.

In some cases, the cutting action of rule dies and hard tool dies can create slight micro tears in the circuit material. These may propagate as the material is flexed and stressed. The best way to mitigate this possibility is through one of the design features listed here and shown in Figure 1:

• Replace sharp inside corners with rounded corners
• Insert tear stops (a drilled hole) at the end of all slits

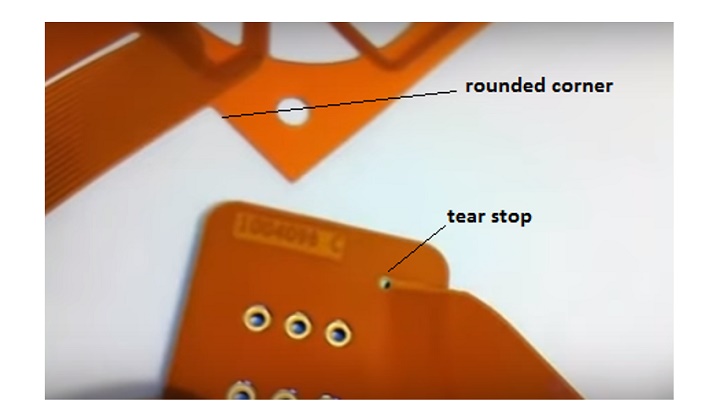

Figure 1: Flex circuit cutline features.

The top of Figure 1 shows a circuit that has a right angle. The junction of the polyimide cutline should be defined by a rounded corner. If the corner is sharp, then a micro-tear could readily propagate when stress is exerted on the angled region.

The bottom of Figure 1 shows a slit that allows the fold or bend line to be inside the body of the part. In this case a hole is used to create a tear stop. Without this hole, the slit could propagate further when the tail is stressed. Either of these defensive design features significantly reduces the likelihood of tear propagation.

In most cases, the differences in the cutting action will have little impact on the performance of a part and physical differences are unlikely to be noticed under low magnification. In some specialty applications, the differences among the various cuts could impact the function of the part. An experienced application engineer can help determine the best cutting method to avoid any functional or performance problems.

Dave Becker is vice president of sales and marketing at All Flex Flexible Circuits LLC.
