Advanced Printing for Microelectronic Packaging
March 11, 2015 | Kenneth H. Church, Xudong Chen, Joshua M. Goldfarb, Casey W. Perkowski, Samuel LeBlanc, nScrypt Inc.Estimated reading time: 16 minutes
Micro-dispensing Small Solder Dots
A 15x15 array of solder dots were dispensed using the company micro-dispenser. A 100/150 pen tip was used. Print frequency was 4 dots per second using a 1 millimeter Z lift between dots. The viscosity of the solder was 100,000 cp. Dots were dispensed in at a set distance apart to form a matrix and the printing gap was 30 microns. A constant pressure of 8 pounds per square inch (psi) was used. The pressure was not varied and was set at a value that matches the flow rate of the desired dispense rate. The pressure was strongly dependent upon the viscosity of the material being dispensed, the inner diameter of the pen tip and the shape of the pen tip. The solder was comprised of multiple materials and including a flux which could separate if the pressure was too high. There are some materials that are dispensed at pressures of almost 100 psi but that much pressure could separate the flux in solder paste. The ability to use low pressures for printing was unique and was attributed to the patented company shaped pen tip. The solder dots averaged between 75 and 100 microns in diameter depending on the parameters being used. This was a proximity dispensing approach, it was not a jetting action and therefore the gap was a critical component for consistency. The material makes contact with the substrate and the pen tip simultaneously. The surface tension of the material and substrate combined with the pressure of the pump created a consistent dot pattern. The dot patterns can be seen in Figure 5 below.
Figure 5. SEM photos of solder dots.
The size of the pen tip was chosen because the solder paste is comprised of metal particles and the average particle size was approximately 15 microns in diameter which could clog smaller pen tips. It also allowed for enough material to be dispensed during the rapid print time. It is interesting to note that SEM or other photos of solder dots typically appear like large mounds of tiny particles, but the SEM photos in Figure 5 show the individual spheres were prominent looking. This was due to the size per mound ratio. The company micro-dispenser allows for significantly less particles per mound to be printed and controlled during the dispense process. A number of prints were done and while this process was not optimized, it was demonstrated that prints of this type could be done and controlled. Figure 6 below shows a plot of the array.

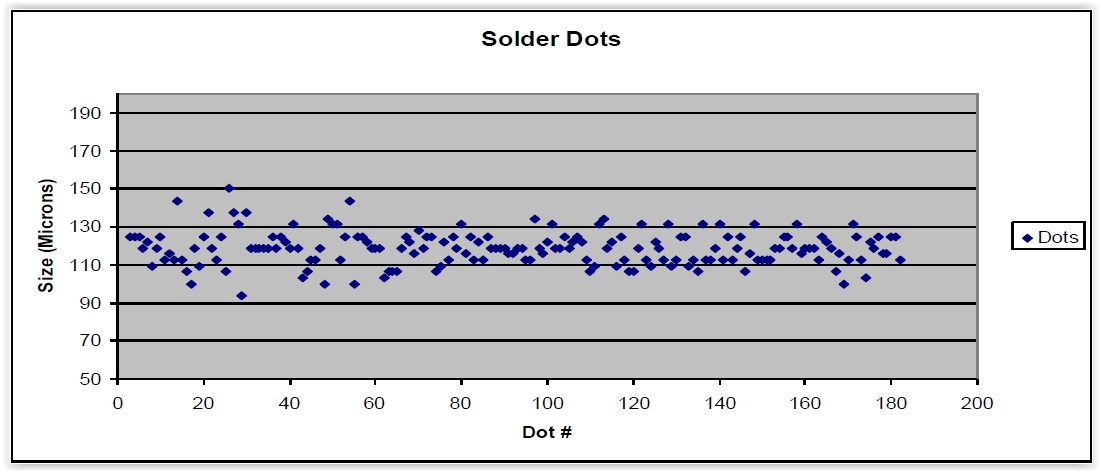

Figure 6. Scatter plot of the dot number versus the dot size.
Micro-dispensing Adhesive Fine Features
A 9x12 array of silver epoxy was dispensed using the company micro-dispenser. The features of the print consisted of one vertical and one horizontal line that formed the shape of a cross (see figure 7 below.)

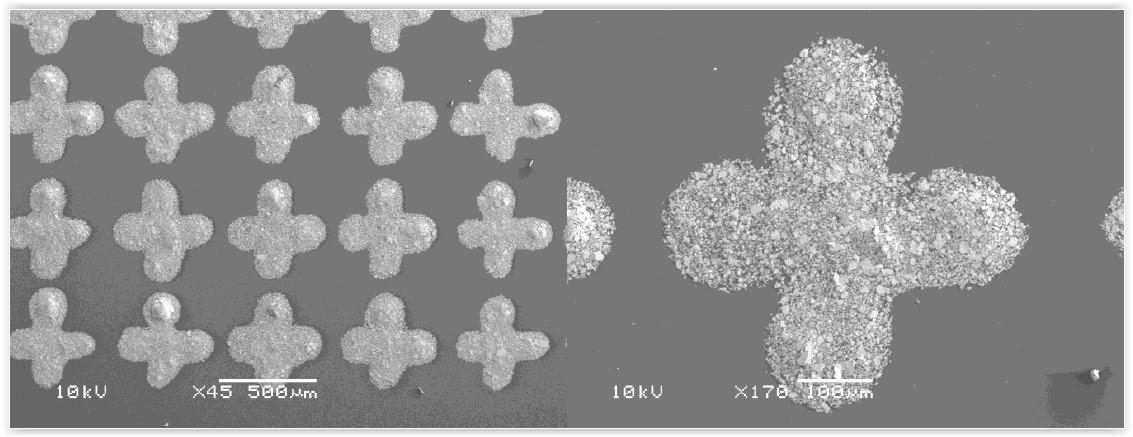

Figure 7. SEM photos of printed silver epoxy patterns.
The print was done using a 10μm gap. The pen tip used was a 100/150. A constant pressure of 12 psi was also used. To control the starts and stops, a pre and post travel in both the Z and X or Y was used. Even with the extra travel, the print was still done at approximately 3 hertz. The average cross was approximately 150 microns wide and had a line length of approximately 450 microns. The line length could be adjusted to any size using a digital input. The shape of the patterns was reasonably consistent however they were not identical. It is interesting to note that there appears to be a correlation between the line length and width. The variation is more than likely due to the gap variations that would occur on non-perfect surfaces. If the gap is less than 10μm, the pressure push back may have an effect on the volume being dispensed. Prescanning would enable a tighter control if needed or the other alternative was to raise the gap above the critical pressure feedback height. The crosses were characterized by the average length of the two lines and the average width of the two lines. Although the print was not optimized, Figure 8 below shows the accuracy achieved.

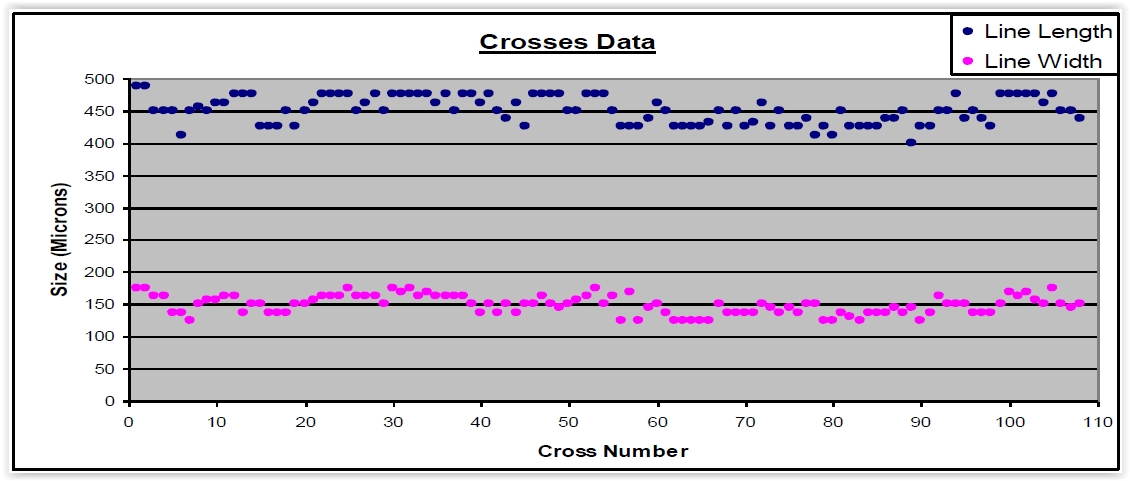

Figure 8. Scatter plot of the pattern number versus Line Width and Line Length.
3D Printed Structures Using Micro-dispensing and Fused Deposition
Micro-dispensing for electronic packaging is important and has contributed in such areas as solder and epoxies. The contribution of micro-dispensing in future electronic packaging will not diminish. There are other applications that this is viable for and including printed RF shielding [6]. Micro-dispensing will not stop there, but will continue to take more and more of the integrated build and it will continue to evolve and become more prominent in packaging. The combination of micro-dispensing and fused deposition will enable rapid prototyping and production of models and circuits that were not previously possible. A number of researchers are considering 3D printing as viable solutions that reach beyond rapid prototyping [7,8]. Some researchers have started implementing electronics within the structures [9] and including changing the structures to control EM fields [10,11] Full monolithic objects with embedded circuits would become not only possible, but an attractive option that will grow in use and capabilities. Figure 9 is a rendering of a 3D model of a gyroscope with electronics as part of the structure; monolithically fabricated.
Figure 9. 3D Rendering of a Completely Printed Light Up Gyroscope.
Utilizing the CAD models, it is possible to 3D print the structure and then combining printed electronics to print the metallic pads, the interconnects and the resistors. Figure 8 below is a demonstration of this process; a 3D printed and printed electronic combination of the CAD model from Figure 9.
Figure 10. 3D Printed Gyroscope Disc without components.

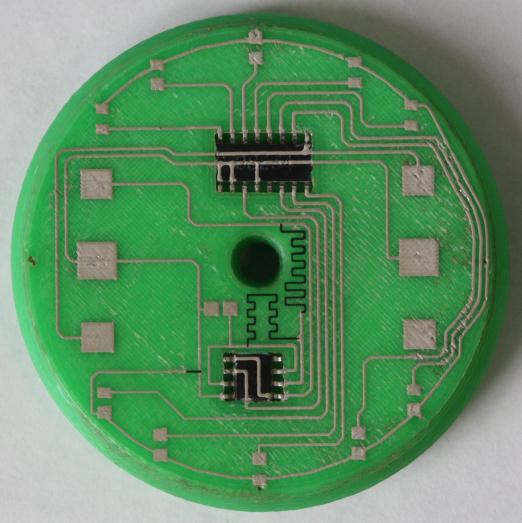

Figure 11. 3D Printed Gyroscope Disc with components.
Figures 9 - 11 is a demonstration of the proposed process utilizing the combined techniques. Since these are digital files the shape can be easily changed. The challenge is to make the electronics functional. The printed circuit features 2 ICs, a 555 timer and a 4017 counter, which are embedded upside down in the surface of the printed disc with their legs level to the surface of the disc. It is important that there is a smooth transition from the legs to the surface of the FD (Fused Deposition) part. A gap between the surface and the leg can cause a break in the printed trace. The traces for the circuit were printed using a conductive paste with a curing temperature below the glass transition point of the thermoplastic that the printed part is created from. This prevents the FD part from warping during the curing process. The traces were printed not only on the surface of the printed part, but also on top of the ICs themselves. The resistors required for the 555 timer and LEDs were also printed using a paste with a low curing temperature, and a resistivity of 50Ω/sq. The resistors do not need to be printed in a straight line, but may be printed around obstacles such as the hole in the center of the disc.
The traces and resistors were both printed with a tip ID of 100 μm and a dispense height of 60 μm. As such, it is important to ensure that the surface of the FD part is smooth; otherwise breaks in the traces will form. Furthermore, even slight variances in the height while printing resistors can cause the resulting resistivity to be unpredictable. As a FD part rarely has a surface smooth enough for optimal micro-dispensing, it must be smoothed after it has been printed. The disc in figure 10 and 11 was smoothed by first sanding it with a fine grit sandpaper and then lightly rubbing it with a solvent. This results in a surface that is ideal for micro-dispensing. As FD processes are improved, the sanding and manual smoothing will not be necessary.
One hurdle that does need to be solved for wide spread adoption of this process is the lack of tools designed for both micro-dispensing and fused deposition. As there are no programs designed with this application in mind, multiple applications needed to be used in order to generate the 3D and 2D models needed to print the disc. The circuit diagram was initially created in one software program, and then exported as a DXF. The disc was then modeled in another program. The circuit DXF was then imported over top the disc to cut the holes needed to embed the ICs. The disc with the IC holes was then saved as a STL file. The STL was then sliced and converted to paths needed to print the object, while the circuit DXF was converted straight to paths. This long tool chain made modifying the circuit and/or the disc a complicated multi step task. Ideally a single program created with both circuits and 3D modeling should be used.
While this part has its circuit printed on the top, it is not limited to there. After the circuit has been printed it is possible to continue the FD process on top of the circuit embedding it within. Utilizing this method, it is even possible to create full three-dimensional circuits embedded inside the plastic part. This is where the advantages of manufacturing using micro-dispensing and fused deposition will really come to light.
Conclusions
Electronic packaging is becoming more complex given the amount of circuitry required in smaller volumes. This will require tighter tolerances in dispensing and in robotic control for placement. The micro-dispensing of dots and lines utilizing the company micro-dispenser has the ability to accurately place and control the volume of solders and epoxies. This could be enabling for existing and future electronic products. Additionally, micro-dispensing was used to demonstrate 3D electrically functional structures. These devices perform like standard electronic boards, but do not require solder. The monolithic builds will be more rugged and as the technology matures this will also add more functions per volume since an additional dimension will be used more effectively.
References
[1] K. Gilleo, The First 7,000 Years of Soldering, Part I CIRCUITS ASSEMBLY OCTOBER, 1994, 430-34.
[2] C R Siviour1, S M Walley, W G Proud and J E Field, Mechanical properties of SnPb and lead-free solders at high rates of strain J. Phys. D: Appl. Phys. 38 (2005) 4131–4139.
[3] M. Bellis, The History of Adhesives and Glue, URL: http://inventors.about.com/od/gstartinventions/a/glue.htm
[4], K. Church, H. Tsang, R. Rodriguez, P. Deffenbaugh, Printed Circuit Structures, the Evolution of Printed Circuit Boards, IPC Materials Tech, 2013.
[5] B. Li, P. Clark, K. Church, Robust Direct-Write Dispensing Tool And Solutions For Micro/Meso-Scale Manufacturing And Packaging Proceedings of the 2007 International Manufacturing Science And Engineering Conference MSEC2007, October 15-17, 2007, Atlanta, Georgia, USA.
[6] Xudong Chen, Kenneth Church, Direct Printing/Micro-dispensing Solution for 3D Coating Applications, IMAPS 2010.
[7] J. Jainschigg.“Just Build It: 3D Fabrication for Every Budget,” Smarter Technology, 22 Nov. 2010
URL: http://www.smartertechnology.com/index2.php?option=content&do_pdf=1&id=651
[8] Ian Gibson, David Rosen, Brent Stucker. “Additive Manufacturing Technologies: Rapid Prototyping to Direct Digital Manufacturing”, Springer, New York, Chapter 4, pp 72 – 74.
[9] C. Gutierrez, R. Salas, G. Hernandez, D. Muse, R. Olivas, E. MacDonald, M. Irwin, M. Newton, K. Church, B. Zufelt, CubeSat Fabrication through Additive Manufacturing and Micro-Dispensing, IMAPS 2011.
[10] Raymond C. Rumpf, Javier Pazos, Cesar R. Gacia, Luis Ocha and Ryan Wicker.“3D Printed Spatially Variant All-Dielectric Metamaterials,” Submitted to Phys. Rev.Oct. 2012.
[11] C. R. Garcia, J. Correa, D.Espalin, J. H. Barton, R. C. Rumpf, R. Wicker, and V. Gonzalez, "3D printing of anisotropic metamaterials," Progress In Electromagnetics Research Letters, Vol. 34, 75-82, 2012.
Editor's Note: This paper was originally published in the conference proceedings of IPC APEX EXPO.
Page 3 of 3Suggested Items
