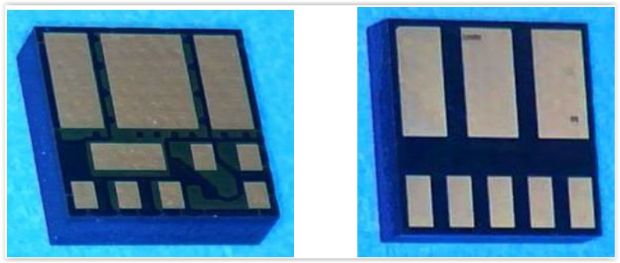

Figure 5: LGA Images_ Non-identical Pad Size for Signal and Ground Pins.

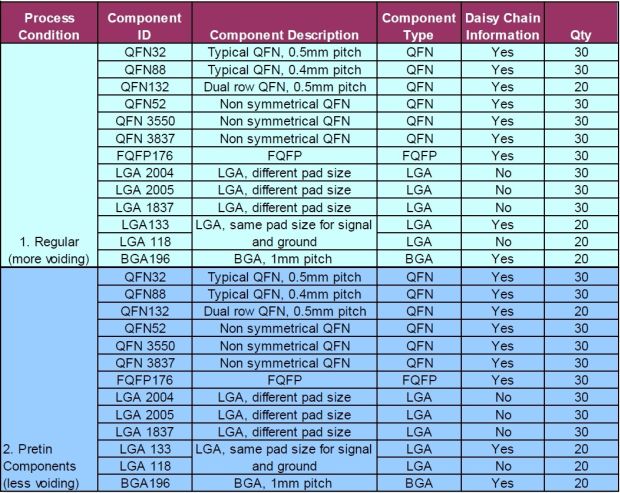

Table 1: Component Details
Thermal Cycle Test Conditions
The thermal cycle testing was performed in an air-to-air thermal cycle chamber, from 0 to 100°C with 10-minute dwell time at each peak temperature, and a temperature ramp rate and cooling rate of approximately 10-15°C per minute. The chamber profile of temperature versus elapsed time is shown in Figure 6.

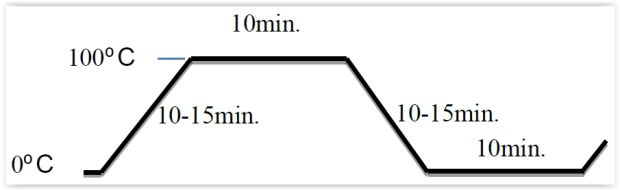

Figure 6: Thermal Cycle Temperature Profile - 0 to 100°C
