Additive Reality: Drop It, and Enjoy the Greenback

The columns so far have brought up the technical aspects of inkjet solder mask and made readers more familiar with this technology. This last column instead will show how the technical aspects match the commercial ones. It will start by introducing the main change in the manufacturing compromise and then the general details on payback period¹.

Presently, traditional solder mask has been a balance between accuracy and throughput. Inkjet brings one more dimension: the copper thickness (Figure 1). A single print coating process by inkjet can handle thick or thin copper, in other words, the same inkjet tool is able to coat this thicker copper with fidelity to narrow features, fast, or a compromise between the two.

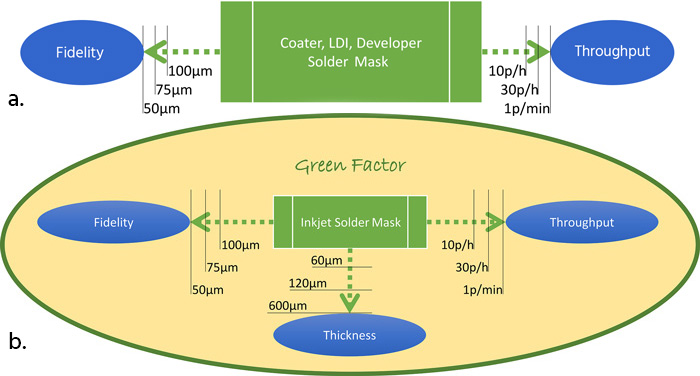

Figure 1: a) A traditional compromise, what do you want? Accuracy or throughput?; b) Inkjet compromise, still a choice to make, though, a useful one.

Of course, traditional technology can create thick solder mask and therefore sufficiently cover thick copper traces. However, solder mask coated with inkjet would be conformal (Figure 2); additionally, it would require much less solder mask material compared to traditional solder mask deposition methods.

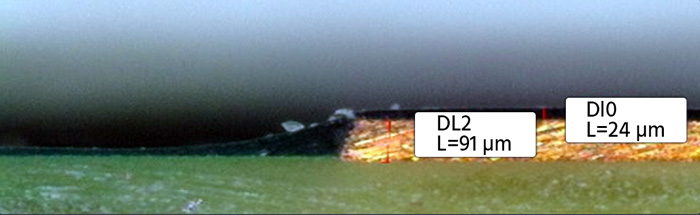

Figure 2: Example of a thick, solder mask coated, copper trace (91µm, ~3.58mil, ~3 ounce). In this situation, the inkjet coating technology targets 24 µm on copper and on laminate. Traditional coating technologies for solder mask, like curtain, spray, or screen printing, would be able to achieve the desired thickness on copper, and especially its edges, by “wasting” a large amount of solder mask on the laminate. This is the perfect example of the advantages of additive manufacturing for electronics.

In Figure 1b, any compromise is within the green factor. Any chosen configuration will bring reduction of CO₂emission, direct (by lowering energy consumption) or indirect (by diminishing consumable usage). An eye on the future tells you that such emission will become expensive. The focus on now tells you how easy it is to market a low CO₂ emission board to your customers.

The traditional coating of solder mask is a well-established manufacturing technology. Intensive and long-lived market competition fully optimized production costs, both on the investment (CAPEX) and the consumables (OPEX). Any company can generate the numbers:

• Running costs as energy, consumables, and waste treatments
• Floor space and the related permits
• Labor will show up as the drivers for the payback period

Present configuration can expect a return within few years. The companies running production with inkjet solder mask welcome the reduction in consumables of approximately 80% and the reduction of floor space (with its facility) down to a tenth. Additionally, they see that labor evolves. The skills level needed better matches the staff qualifications and the production floor environment is healthier, thanks to the lower amount of solder mask material and its virtual absence of volatile organic components (VOC). This makes OPEX only a fraction. This means more return per board.

However, the intelligence placed in the match between inkjet and solder mask together with the technological hardware reflects in the CapEX. Luckily, the one investment in inkjet replaces several ones: coater, driers, LDI tools, wet lines, and more. In the end, it all comes down to numbers. These numbers make the Total Cost of Ownership (TCO) calculation. Such calculation can provide a comparison between traditional technology and inkjet and boil it down to a single number: the number of years of the payback period.

The more accurate the numbers, the better the insight, so I cycled to a nearby PCB manufacturer and obtained the numbers with a scenario of a few hundred thousand panels per year. Of course, in these numbers, there is much of the SUSS machine running costs, so, for the unbiased character of this column, I will not disclose numbers, only aggregated trends. It was evident that inkjet investment is higher; thanks to the low OPEX, the Net Present Value (NPV) reaches zero one year before the traditional technology. Not only payback period is one year better, since OPEX is lower, every year means less cost for the same boards produced. In view of these numbers, it is a no-brainer.

Before closing, let me go back to the green factor. The production of the boards is more independent from fluctuation in electricity price and waste disposal. These forecasted factors cannot enter the TCO, though the fact remains that each board will have a smaller CO₂ footprint. The only logical step then will be to inform the marketing department and get a nice “green factor” logo done.

As mentioned at the beginning, this is the last column. I will take a creative break. If you enjoyed the column so far, you might find the upcoming FED conference in Potsdam and its digital solder mask panel very interesting. I will be glad to welcome you there.

P.S. My usual bike stroll is a few kilometers more than you might think. I am currently training for a charity activity that involves biking.

References

1. “Payback Period,” by Julia Kagan, Feb. 7, 2022, Investopedia.com.

Luca Gautero is product manager at SUSS MicroTec (Netherlands) B.V.
